| Application: | Buildings And Projects | Type: | Fixed With Tower Head |
|---|---|---|---|
| Max. Load: | 5 T | Jib Length: | 50 M |
| Tip. Load: | 1.0 T | Power supply: | 380V/50Hz Or According To Client's Requirements |
| Mast section: | 1.6*1.6*2.5 M (block Type) | Main Chord: | 135*10mm (square Tube) |
5010 Power Line Topless Tower Crane For Lifting Building Materials
Performance parameters
• Max. jib length: 50m;
• Max. lifting capacity: 5t;
• Max. hoisting capacity at jib tip:1t;
• Rated lifting moment: 500 Kn.m;
• Max. freestanding height: 30m; Max. working height of anchored crane: 120m;
Specification
| Rated lifting moment (kN.m) | 500 | |||||
| Lifting height (m) | Rope fall | Free-standing stationary crane | Anchored crane | |||
| α＝2 | 30 | 120 | ||||
| α＝4 | 30 | 120 | ||||
| Working radius (m) | Max. working radius | 50 | ||||
| Min. working radius | 3 | |||||
| Max. lifting capacity (t) | 5 | |||||
| Hoisting mechanism | Rope fall | α＝2 | α＝4 | |||
| Speed (m/min) | 65/32/7.0 | 32/16/3.5 | ||||
| Lifting weight (t) | 1 | 2.5 | 2.5 | 5 | ||
| Power (kW) | 15/15/4 | |||||
| Tolleying mechanism | Speed (m/min) | 0.7/0.35 | ||||
| Power (kW) | 3.7 | |||||
| Slewing mechanism | Speed (r/min) | 0.4 | ||||
| Power (kW) | 4 | |||||
Technical features
a. Speeds of trolleying and slewing mechanisms are high, good speed adjusting performance, excellent stability.
b. Anti-broken wire rope device and anti-broken shaft device
c. Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
d. Advanced electronic appliances, such as Schineider.
e.. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.
Safety devices:
1): Hoist height limit
2): Over speed limit
3): Over load limit
4): Lifting moment limit
5): Slewing angle limit
6): Emergency stop button
7): Obstruction light (tip of jib, tower head)
8): Wind lock device.
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.

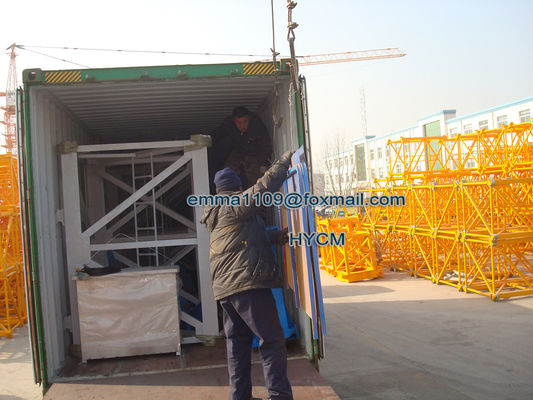

Photos
