PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t

China PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t supplier
PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t supplier PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t supplier PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t supplier

Large Image :  PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t

Product Details:

Place of Origin: China
Brand Name: HYCM TOWER CRANE
Certification: CE, ISO, GOST, CU-TR
Model Number: QTZ63(PT5510) Tower Crane

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $60600-65900 per set
Packaging Details: Naked packing, 5*40’HQ+1*20'GP containers.
Delivery Time: 15 days after receiving the deposit or origin LC
Payment Terms: TT, LC
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Application: Buildings And Projects Type: Fixed With Tower Head
Max. Load: 6t Jib Length: 55m
Tip. Load: 1.0t Power supply: 380V/50Hz Or According To Client's Requirements
Mast section: 1.6*1.6*2.5m (Block Type) Main Chord: 135*10mm (square Tube)

PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t


Technical Parameters
1) Nominal Lifting Moment: 630 KN.m
2) Working Range: 3-55 m
3) Max. Lifting Capacity: 6 t
4) Independent Standing Height: 40 m
5) Attached Standard Height: 150 m
6) Lifting Speed: 80/40/8.5 40/20/4.25 m/mim
7) Slewing Speed: 0.6 r/min


Specification

Rated lifting moment (kN.m) 630
Lifting height (m) Rope fall Free-standing stationary crane Anchored crane
α=2 40 150
α=4 40 150
Working radius (m) Max. working radius 55
Min. working radius 3
Max. lifting capacity (t) 5
Hoisting mechanism Rope fall α=2 α=4
Speed (m/min) 80/40/8.5 40/20/4.25
Lifting weight (t) 1 2.5 2.5 5
Power (kW) 24/24/5.5
Tolleying mechanism Speed (m/min) 0.6
Power (kW) 3.7
Slewing mechanism Speed (r/min) 0.4
Power (kW) 4


Advantage
1. 15 years of experience in supplying new Topless tower crane with HYCM Brand which export to more than 20 countries with CE / ISO Certificates.
2. Stationary / Traveling and internal climbing type topless tower crane are available.
3. Quality Control: Impeller blasting/rust protection paint, advanced painting process and Strict and experience welding line
4. New designed mast, can be used to Internal and external climbing tower crane
5. Well known brand mechanism system, Schneider Electronic control system, Jjiangte and Jiuhe motor
6. Engineers available to service machinery overseas.
7. For warranty: 12 months from the B/L date.





Applications

It’s used in construction building site, such as Multi commercial housing, High rise building, Skyscraper, and Workshop Material handling etc.



Pictures

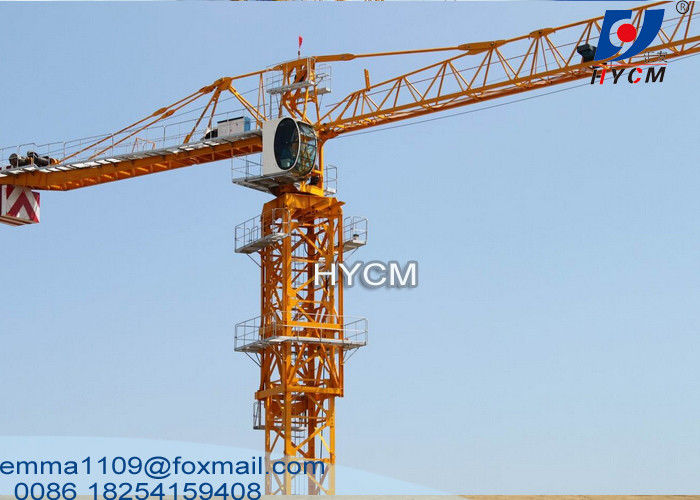

PT5510 Construction Cranes Tower Topflat Towercrane Specifications 6t
