Most Popular Construction Cranes Tower QTP5010-5tons Real Estate

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ50(PT5010) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $37600-40900 per set

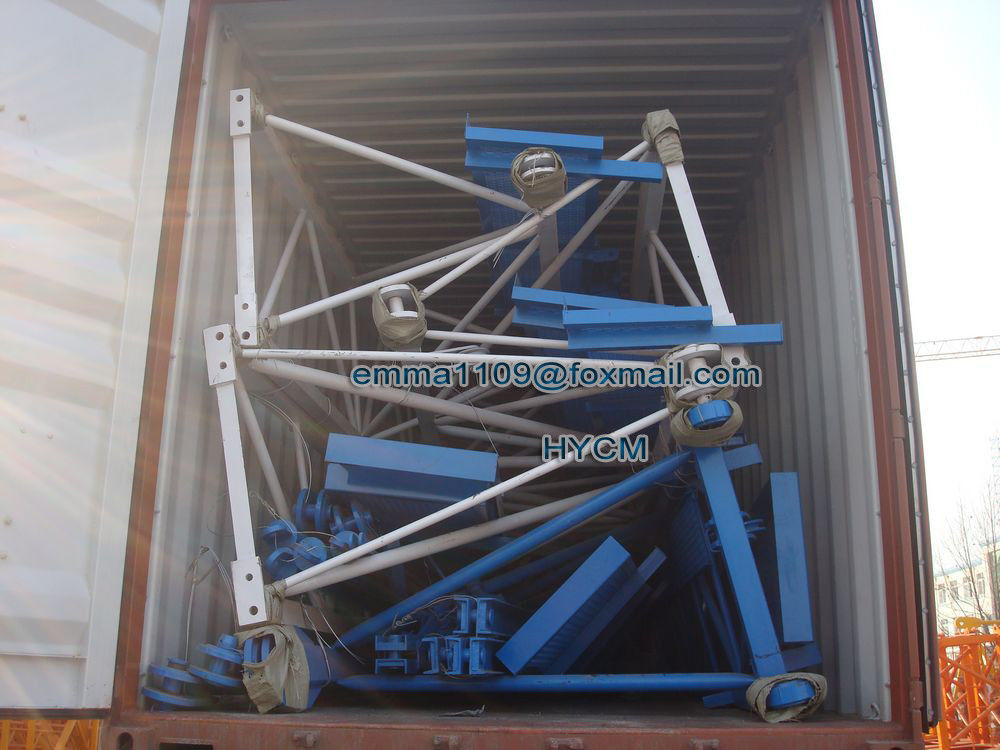

Packaging Details: Naked packing, 3*40’HQ+1*20'GP containers.

Delivery Time: 15 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 30 sets per month

Get Best Price
Product Details
Highlight:
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
5 T
Jib Length:
50 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5 M (block Type)
Main Chord:
135*10mm (square Tube)
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
5 T
Jib Length:
50 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5 M (block Type)
Main Chord:
135*10mm (square Tube)
Product Description

Most Popular Construction Cranes Tower QTP5010-5tons Real Estate


Performance parameters
• Max. jib length: 50m;
• Max. lifting capacity: 5t;
• Max. hoisting capacity at jib tip:1t;
• Rated lifting moment: 500 Kn.m;
• Max. freestanding height: 30m; Max. working height of anchored crane: 120m;

Specification

Rated lifting moment (kN.m)500
Lifting height (m)Rope fallFree-standing stationary craneAnchored crane
α=230120
α=430120
Working radius (m)Max. working radius50
Min. working radius3
Max. lifting capacity (t)5
Hoisting mechanismRope fallα=2α=4
Speed (m/min)65/32/7.032/16/3.5
Lifting weight (t)12.52.55
Power (kW)15/15/4
Tolleying mechanismSpeed (m/min)0.7/0.35
Power (kW)3.7
Slewing mechanismSpeed (r/min)0.4
Power (kW)4


Technical features
a. Speeds of trolleying and slewing mechanisms are high, good speed adjusting performance, excellent stability.

b. Anti-broken wire rope device and anti-broken shaft device
c. Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
d. Advanced electronic appliances, such as Schineider.
e.. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.


Safety devices:
1): Hoist height limit
2): Over speed limit
3): Over load limit
4): Lifting moment limit
5): Slewing angle limit

6): Emergency stop button

7): Obstruction light (tip of jib, tower head)

8): Wind lock device.
