Top Slewing Huge Hammer Head Tower Crane qtz7550 25T Load 75M Jib

Product Details

Place of Origin: China

Brand Name: HYCM

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ500(7550) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $257700-276300 per set

Packaging Details: Naked packing, 12*40’HQ containers.

Delivery Time: 45 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 5 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
25 T
Jib Length:
75 M
Tip. Load:
5.0 T
Mast section:
2.5*2.5*6 M
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Color:
Yellow, Red Or According To Clients Needs
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
25 T
Jib Length:
75 M
Tip. Load:
5.0 T
Mast section:
2.5*2.5*6 M
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Color:
Yellow, Red Or According To Clients Needs
Product Description

Top Slewing Huge Hammer Head Tower Crane qtz7550 25T Load 75M Jib



Performance parameters

a. Max. jib length: 75m
b. Max. lifting capacity 25t
c. Max. hoisting capacity at jib tip: 5.0t
d. Max. lifting moment 50000 t.m
e. Max. free-standing height: 73m

f. Max. working height of anchored crane: 200m
g. Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane.


Specification

Foundation Fixed angle or according to clients needs
Model QTZ500(7550) Tower Crane
Freestanding height 73 meters
Max. height 200 meters
Max. radius 75 meters
Jib end load 5.0 t
Max. load 25 t
Drum capacity 600 meters
Lifting speed 0-35 and 0-70 m/min
Slewing speed 0-0.57 r/min
Trolley speed 0-60 m/min
Power line voltage 380V/50Hz (60Hz) or others
Counter weight Steel-structured frame (without concrete)
Mast section 2.5 x 2.5 x 6m (split type)


Features
Durable, safe and low-maintenance cranes live up to the highest manufacturing standards. They are durable, operator-friendly, safe and have low maintenance requirements.
Quality materials for durability
Our components are traceable back to original premium-quality manufacturers, ensuring that they can easily be replaced when necessary. The quality of our components assure good resistance to fractures under conditions of high loading and low temperatures.
Quality steel mill-certified to European EN standards.
High-quality components from suppliers represented worldwide.
Protected: For safeguarding, all components are fitted into housing of the highest quality. Fully enclosed motors - IP55 - ensure long lasting motor insulation.
Easily identifiable: Cables and components are numbered or marked for easy identification, reducing maintenance time and costs.
Efficient: Virtually all internal electrical installation is done using multi-plug connections which reduces erection time.

Safety devices:
1): Hoist height limit
2): Over speed limit
3): Over load limit
4): Lifting moment limit
5): Slewing angle limit

7): Obstruction light (tip of jib, tower head)

8): Wind lock device.



The process features

1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.

2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.

3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life


 Pictures

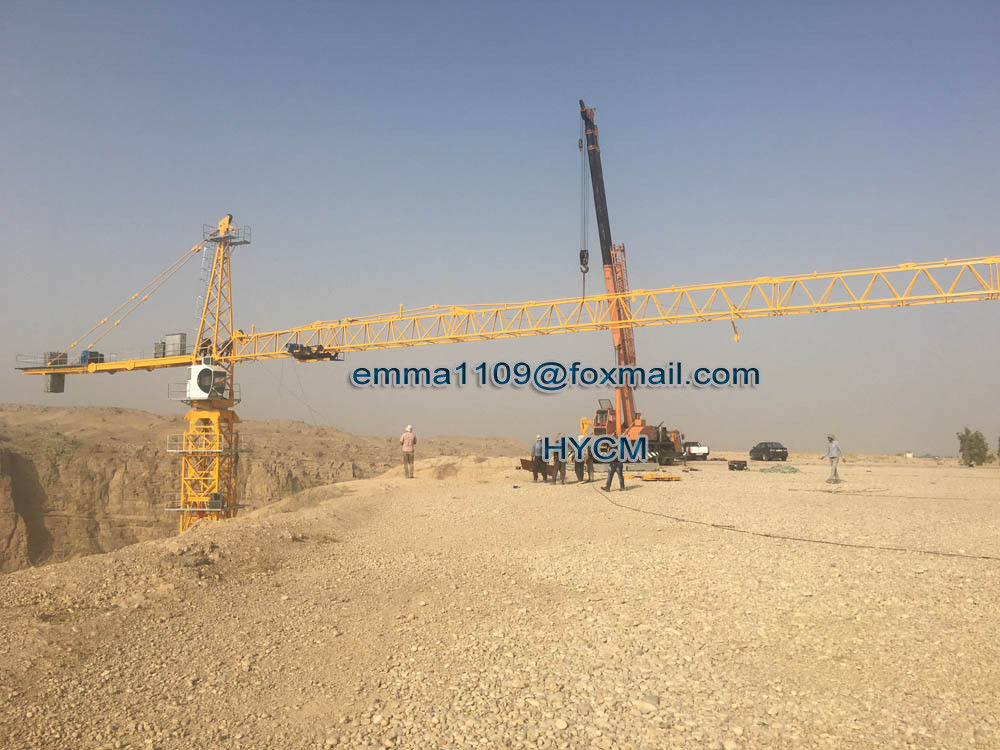

Top Slewing Huge Hammer Head Tower Crane qtz7550 25T Load 75M Jib 0Top Slewing Huge Hammer Head Tower Crane qtz7550 25T Load 75M Jib 1
