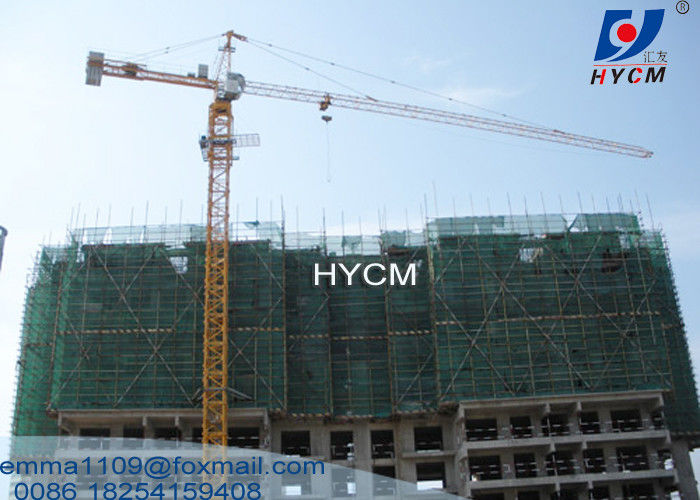

Model TC3808 Hammerhead Tower Crane 3 Tons Weight Capacity With Cat Head

Name: Model TC3808 Hammerhead Tower Crane 3 Tons Weight Capacity With Cat Head
Brand: Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane
SKU: TC3808 Small Tower Crane
Price: 25,600.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HYCM

Certification: CE, ISO, GOST, CU-TR

Model Number: TC3808 Small Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $24600-26600 per set

Packaging Details: Naked packing, 3*40’HQ containers.

Delivery Time: within 20 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 40 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Condition:	100% New	Application:	Buildings And Projects
Type:	Fixed With Tower Head	Max. Load:	3 T
Jib Length:	38 M	Tip. Load:	0.8 T
Power supply:	380V/50Hz Or According To Client's Requirements	Mast section:	1.51.52.2 M
Main Chord:	125*10mm	Foundation Type:	Well-frame, Outrigger Or Base With Ballast

Condition:	100% New
Application:	Buildings And Projects
Type:	Fixed With Tower Head
Max. Load:	3 T
Jib Length:	38 M
Tip. Load:	0.8 T
Power supply:	380V/50Hz Or According To Client's Requirements
Mast section:	1.51.52.2 M
Main Chord:	125*10mm
Foundation Type:	Well-frame, Outrigger Or Base With Ballast

Product Description

Model TC3808 Hammerhead Tower Crane 3 Tons Weight Capacity With Cat Head

Technical Features
1) Advanced technical parameters, max. radius / working length is 38m, the static height is 29m, it can reach up to max. height 80m by adding mast sections and anchorages.
2) The complete crane adopts internationally well-received beautiful shape.
3) The crane features high working speed and excellent speed regulation performance.
4) The cabin is independently installed externally with good vision and large inner space, thus offering a good working environment for operators.
5) Equipped a set of safety devices so as to ensure the tower crane's reliable operation.

Specification

Model		QTZ31.5 (3808) Tower Crane
Type		Top kit / Cat Head
Working Radius (m)		38
Max. Load Capacity (T)		3
Tip Load (T)		0.8
Freestanding height (m)		29
Max. Height with anchorage (m)		800
Mast Section dimension (m)		1.5×1.5×2.5, angle steel 125×10mm
Hoisting Mechanism	Speed (m/min)	(a=2) 46/23/5
	Motor power (kw)	15
Slewing Mechanism	Speed (r/min)	0.76/0.38
	Motor power (kw)	3.7
Trolleying Mechanism	Speed (m/min)	24.6/16.5
	Motor power (kw)	2.2/1.5
Jacking-up System	Speed (m/min)	0.5
	Motor power (kw)	3
Total Power (kw)		23.5
Power Supply		380V/50Hz or according to clients needs

Three mechanisms advance:

1. The hoisting mechanism:

The hoisting mechanism is made up of the electromotor, brake wheel, speed reducer, coiling block, and hoisting height limiter.

2. The slewing mechanism:

The slewing mechanism is made up of two-speed electric motor, fluid coupling, electromagnetic brake, slewing angle limiter, planet reducer, pinion and the base support,

3. The trolleying mechanism:

The trolleying mechanism is made up of two-speed electromotor, speed reducer, coiling block, and the trolleying limiter.

Model TC3808 Hammerhead Tower Crane 3 Tons Weight Capacity With Cat Head 0
