1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings

China 1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings supplier
1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings supplier 1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings supplier 1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings supplier

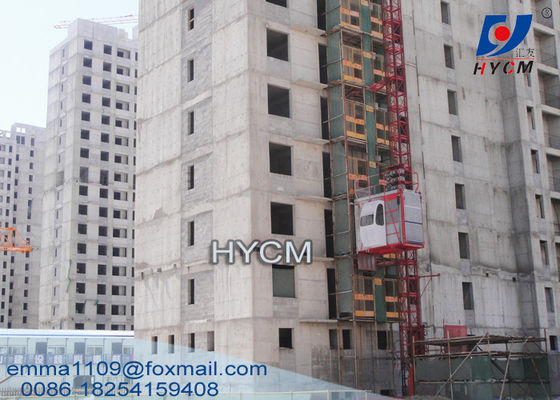

Large Image :  1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings

Product Details:

Place of Origin: China Mainlad
Brand Name: HYCM or XINGDAO
Certification: CE, ISO
Model Number: SC Building Hoist

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $19900-21300 per set
Packaging Details: Naked packing, 1*40’HQ containers.
Delivery Time: 10 days after receiving the deposit or origin LC
Payment Terms: Western Union, L/C, T/T
Supply Ability: 40 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Type: Electric Cable Climbing Max. Load: 1 T
Max. Height: 150-200 M Rated Speed: .34.4 M/min
Power supply: 380V/50Hz Or According To Client's Requirements Motor Power: 2*11 Kw
Motor Brand: Taichang, Jinnuoi Or Other Mast Section Size: 650*650*1508mm

1000kg Passenger Hoist Lift Aan and Material For Real Estate Projects Buildings



Description

Construction Hoist also known as a Man-Lift, Buckhoist, temporary elevator, builder hoist, passenger hoist or construction elevator. This type of hoist is commonly used on large scale construction projects, such as high-rise buildings or major hospitals. There are many other uses for the construction elevator. Many other industries use the buckhoist for full-time operations, the purpose being to carry personnel, materials, and equipment quickly between the ground and higher floors, or between floors in the middle of a structure. There are three types: Utility to move material, personnel to move personnel, and dual-rated, which can do both.



Specification

Model SC100 single cage construction hoist
Payload capacity Up to 1000 kg
Speed 34.4 m/min
Max. lifting height 150 m (Increased lifting height on request.)
Cage width (internal) 1.3 m & 1.5 m
Cage length (internal) 3 m
Cage height (internal) 2.2 m
Motor control Directly driven without inverter
Motor power 2 x 3 x 11 kw
Power supply range 380V, 50Hz or 60 Hz, 3 phase
Type of mast 650mm, Tubular steel with integrated rack
Length mast section 1.508 m
Weight mast section with 1 racks 127 kg





Parts



1. Driver Cabin
The driver cabin of our construction hoist is constructed from hot dip galvanized plates with surface powder spraying treatment which ensure superior corrosion resistance. It has fan that can improve driver's working environment.

2. Gear Train
The new back gear is lengthened by one time at the stationary bearing end where it is equipped with locating taper pin to improve stress state and avoid loosening of back gear that will affect gear backlash.

The parts such as bear gear, idler wheel, etc. that have influence on running stability are improved to enhance machining and manufacturing precision. All of them will experience thermal refining treatment and galvanizing treatment after that, thus showing excellent durability. Case door pulley and cable pulley are made from nylon material which can prolong their life time and effectively reduce noise.
