Highlight:

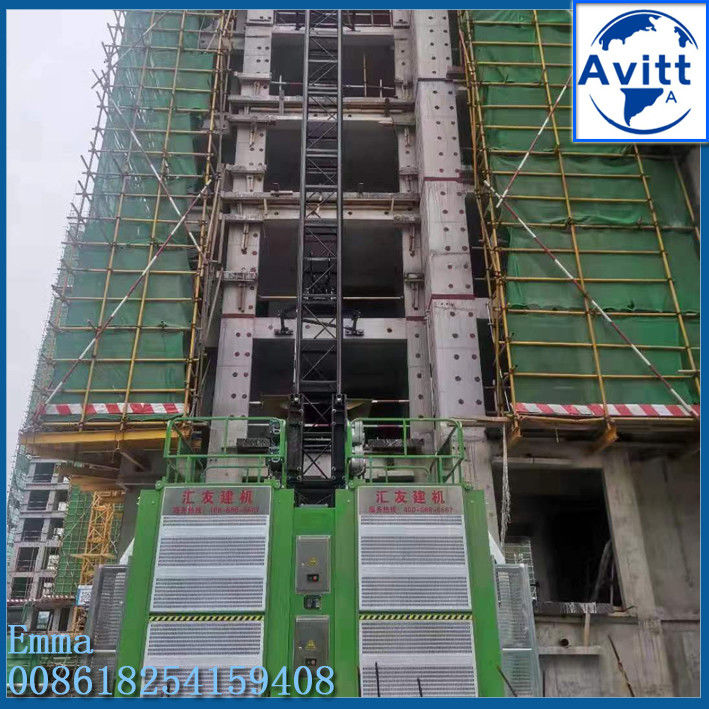

Customized SC Rack and Pinion Building Elevator for Various Projects
Builder's hoist/ building hoist
The Cabin & Cage, Mast Section, wall tie and all other parts, we can do OEM for customers, and we can make the proper solution according to customer building situation
Specification
Building Elevator: Direct driving type with fixed speed. Common models 33m/min
| Specification |
Type |
Lifting Capacity |
Lifting Speed |
Motor Power |
Safety device |
|
Single cage without
counter weight
|
SC 100 |
1000Kg |
33m/min |
2×11Kw |
SAJ 30-1.2 |
| SC 120 |
1200Kg |
33m/min |
2×11Kw |
SAJ 30-1.2 |
| SC 150 |
1500Kg |
33m/min |
2×13Kw |
SAJ 40-1.2 |
| SC 200 |
2000Kg |
33m/min |
3×11Kw |
SAJ 40-1.2 |
|
Twin cages without
counter weight
|
SC 100/100 |
1000Kg×2 |
33m/min |
2×11Kw×2 |
SAJ 30-1.2 |
| SC 120/120 |
1200Kg×2 |
33m/min |
2×11Kw×2 |
SAJ 30-1.2 |
| SC 150/150 |
1500Kg×2 |
33m/min |
2×13Kw×2 |
SAJ 40-1.2 |
| SC 200/200 |
2000Kg×2 |
33m/min |
3×11Kw×2 |
SAJ 40-1.2 |
Note:
1. This type of common hoist is controlled by PLC which make start-up & stop more stable.
2. The electric contactors use Schneider or Simense with high quality performance.
3. All the technical datas will be changed following with innovation. Please confirm with us before make orders
Building Elevator with Frequency Interver: Low speed type 0-33, 0-40 or 0-46m/min
| Specification |
Type
|
Lifting Capacity
|
Lifiting Speed |
Motor Power
|
VFD
|
Safety device
|
|
Single cage without
counter weight
|
SC100 L |
1000Kg |
0～40m/min
0～46m/min
|
2×11Kw
2×13Kw
|
30Kw |
SAJ 30-1.2 |
| SC150 L |
1500Kg |
0～40m/min
0～46m/min
|
2×13Kw
2×15Kw
|
30Kw
37Kw
|
SAJ 40-1.2 |
| SC200 L |
2000Kg |
0～33m/min
0～40m/min
0～46m/min
|
2×13Kw
3×11Kw
3×13Kw
|
30Kw
37Kw
45Kw
|
SAJ 40-1.2 |
| SC300L |
3000Kg×2 |
0～46m/min |
3×15Kw×2 |
55Kw×2 |
SAJ 40-1.2 |
|
Twin cages without
counter weight
|
SC100/100 L |
1000Kg×2 |
0～40m/min
0～46m/min
|
2×11Kw×2
2×13Kw×2
|
30Kw×2 |
SAJ 30-1.2 |
| SC150/150 L |
1500Kg×2 |
0～40m/min
0～46m/min
|
2×13Kw×2
2×15Kw×2
|
30Kw×2
37Kw×2
|
SAJ 40-1.2 |
| SC200/200 L |
2000Kg×2 |
0～33m/min
0～40m/min
0～46m/min
|
2×13Kw×2
3×11Kw×2
3×13Kw×2
|
30Kw×2
37Kw×2
45Kw×2
|
SAJ 40-1.2 |
| SC300/300L |
3000Kg×2 |
0～46m/min |
3×15Kw×2 |
55Kw×2 |
SAJ 40-1.2 |
Note:
1.Frequency inverter: Schneider, Siemens, Yaskawa or Chinese high quality famous brand can be chosen by clients
2.All the technical datas will be changed following with innovation. Please confirm with us before make orders
Building Elevator with Frequency Interver: High speed type 0-55, 0-63 or 0-72m/min
| Specification |
Type |
Lifting Capacity |
Lifting Speed |
Motor Power |
VFD |
Safety device |
|
Single cage without
counter weight
|
SC 100 M |
1000Kg |
0～63m/min |
3×13Kw |
45Kw |
SAJ 40-1.6 |
| SC 150 M |
1500Kg |
0～63m/min |
3×15Kw |
55Kw |
SAJ 40-1.6 |
| SC 200 M |
2000Kg |
0～55m/min
0～63m/min
0～72m/min
|
2×23Kw
3×18.5Kw
3×19Kw
|
55Kw
75Kw
75Kw
|
SAJ 40-1.6
SAJ 50-1.6
SAJ 50-1.6
|
|
Twin cages without
counter weight
|
SC100/100M |
1000Kg×2 |
0～63m/min |
3×13Kw×2 |
45Kw |
SAJ 40-1.6 |
| SC150/150M |
1500Kg×2 |
0～63m/min |
3×15Kw×2 |
55Kw |
SAJ 40-1.6 |
| SC200/200M |
2000Kg×2 |
0～58m/min
0～63m/min
0～72m/min
|
2×23Kw×2
2×26Kw×2
3×18.5Kw×2
3×19Kw×2
|
55Kw
55Kw
75Kw
75Kw
|
SAJ 40-1.6
SAJ 50-1.6
SAJ 50-1.6
|
Note:
1.The above motor is VFD (87Hz) type
2.Frequency inverter: Schneider, Siemens, Yaskawa or Chinese high quality famous brand can be chosen by clients
3.All the technical datas will be changed following with innovation. Please confirm with us before make orders
Building Elevator advantage
1. Cage: Integral style cage, a whole welded steel structure, compact and sturdy. Roller, back wheel ect. own production, bearing for the best domestic bearings, Aluminum peripherals which is light, no vibration, no noise, etc. also can be designed according to customer requirements.
Cage door: can be designed according to customer requirements into a single, double or ramp type.
2. Motor: Shuang Ma Brand configuration, warranty replacement for 2 years from leave factory date.
Reducer: CASK Brand Gear box configuration, warranty replacement for 2 years from leave factory date.
3. Anti-fall safety device SAJ40-1.2: Shanghai Construction Institute, the domestic well-known brands
4. Electric: all Schneider, except transformers (Schneider does not produce transformers)
5. Mast section: Robot welding, applicability, 0-450 meters of buildings, flat support is one-time stamping of the U-shaped groove, brace support is 20 solid steel which toughness stronger.
Rack own production which can be centered or biased install.
6. Paint: automatic electrophoresis paint line
Produce Equipment for Building Elevator
CNC Plasma cutting machine
Punching machine
Large plate bending machine
Electrophoresis pain production line
Cold forming machine processing line
Robot welding
Loading Containers of Building Elevator
