| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Fixed With Tower Head | Max. Load: | 10t |
| Jib Length: | 60m | Tip. Load: | 2.4t |
| Power supply: | 380V/50Hz Or According To Client's Requirements | Mast section: | 1.835*1.835*2.5m Or 2*2*3m |
| Electric Box: | Schneider | Power Supply: | 380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need |

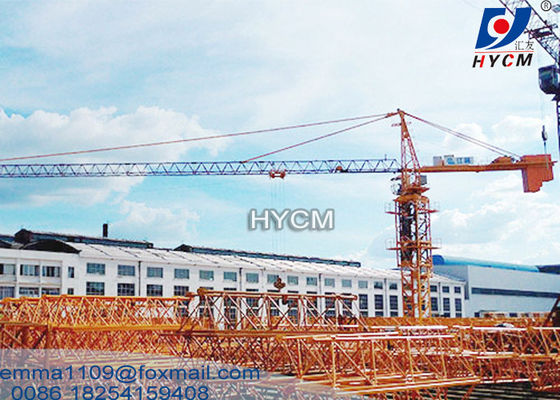

Power Cable Jib Tower Crane QTZ160 With Remote Control And Block Box
Capacity Introduction
1. The main stressed steel parts of QTZ160 tower crane use Q345B steel, the tower body mast section 1.835m*1.835m*2.5m, using on-chip-type or standard mast section of two forms of production.
2. Light weight, air resistance is small, convenient transportation. Rotation adopts double rotary organization. Lifting mechanism is driven by frequency converted motor, running steady.
Specification
| Rated Lifting Moment (KN.M) | 1600 |
| Rated Loading Capacity (t) | 10 |
| Max. Lifting Load (t) | 10 |
| Tip Load (t) | 2.4 |
| Max. Lifting Height (m) | 200 |
| Free standing height (m) | 50 |
| Rope length (m) | 500 |
| Span (m) | 60 |
| Working range (m) | 3 to 60 |
| Slewing speed (r/min) | 0-0.6 |
| Trolley peed (m/min) | 0-60 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 14.6 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 61.5 |
| Electric switch box | Schneider |
| Main Material (mm) | 125*14 /two angle steel with rib |
| Mast section (m) | 1.835*1.835*2.5 |
Outstanding Features
1. The tower crane is a combination of advanced technologies of the present day.
2. It is equipped with a hydraulic self-raising mechanismand afrequency-converting slewing mechanism.
3. The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day, which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control system and the work efficiency of the tower crane.
4. The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range.
Pictures
