qtz5008 4t Hydraulic Telescopic Tower Crane CE Certification Safety Work

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ50(5008) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $26600-28600 per set

Packaging Details: Naked packing, 3*40’HQ containers.

Delivery Time: 10 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 40 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
4t
Jib Length:
50m
Tip. Load:
0.8t
Power supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Mast section:
1.6*1.6*2.2m
Main Chord:
160*12mm
After Sale Service:
Engineers Available To Service Overseas
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
4t
Jib Length:
50m
Tip. Load:
0.8t
Power supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Mast section:
1.6*1.6*2.2m
Main Chord:
160*12mm
After Sale Service:
Engineers Available To Service Overseas
Product Description

qtz5008 4t Hydraulic Telescopic Tower Crane CE Certification Safety Work



Performance parameters

  • This tower crane is an hammerhead with topkit head tower crane, includes foundation frame, mast sections (tower body), climbing system, slewing units, horizontal lifting jib / boom, counter-jib, tower head, operation cab, three mechanisms, electric system and safety device.
  • The max. Boom length is 50m which consist of every 6meters and minimum length is 30m
  • This tower crane freestanding height is 29m and max.height is 120m with more mast section and 6sets anchorages.
  • The max. Load capacity is 4t and tip load at the end jib is 0.8t.



Specification

Model QTZ50 (5008) Tower Crane
Type Fixed
Working Radius (m) 50
Max. Load Capacity (T) 4
Tip Load (T) 0.8
Free standing height (m) 29
Max. Height with anchorages (m) 120
Mast Section dimension (m) 1.6×1.6×2.2, angle steel 160×12mm

Hoisting Mechanism



Speed (m/min)

(a=2) 64.15/32.57/7.0

(a=4) 32.14/15.60/3.5

Motor power (kw) 15/15/4

Slewing Mechanism



Speed (r/min) 0.70/0.35
Motor power (kw) 3.7

Trolleying Mechanism



Speed (m/min) 38.6/25.2
Motor power (kw) 2.2/1.5

Jacking-up System



Speed (m/min) 0.4
Motor power (kw) 4
Total Power (kw) 24.9
Power Supply 380V/50Hz or according to clients needs



Our Advantage

a . 15 years experience of supplying tower cranes with good service and high quality: CE / ISO / GOST / EAC (CU-TR) Certificates.

b . Export to more than 20 countries, like Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Thailand, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar and Algeria etc.

c . New designed mast section which can be used to inner / outer climbing tower crane

d . Famous brand mechanism systems, Schneider electronic box, Jjiangte or Jiuhe motor

e . Long time warranty: 12 months from the B/L date.



Pictures

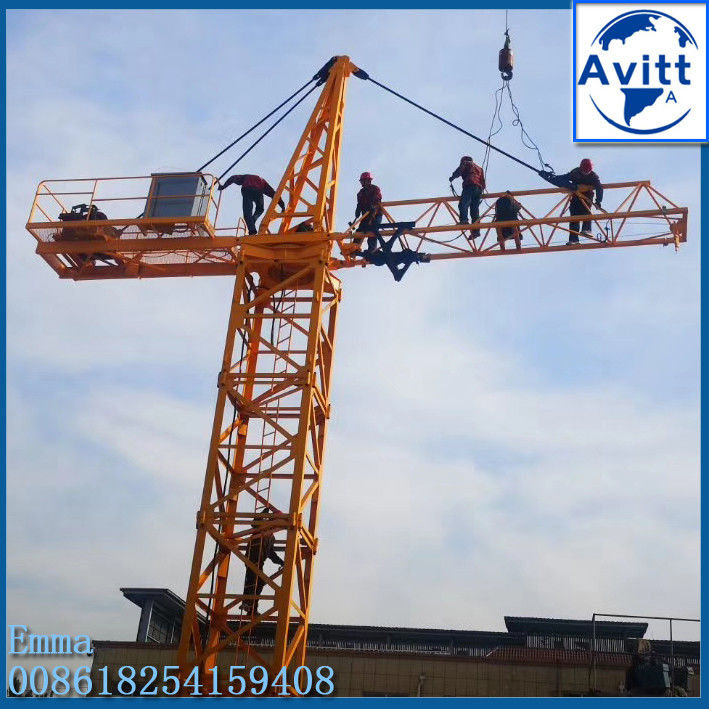

qtz5008 4t Hydraulic Telescopic Tower Crane CE Certification Safety Work 0
