QTZ125 (6515) Building Tower Crane 10t Load 50m Height Price

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ125(6515) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $94400-106900 per set

Packaging Details: Naked packing, 6*40’HQ or 7*40;HQ containers.

Delivery Time: 20 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 20 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
10 T
Jib Length:
65 M
Tip. Load:
1.5 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.833*1.833*2.5m Or 2*2*3m
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
10 T
Jib Length:
65 M
Tip. Load:
1.5 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.833*1.833*2.5m Or 2*2*3m
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Product Description

QTZ125 (6515) Building Tower Crane 10t Load 50m Height Price
Features
1) Working Radius (m): 65
2) Max. Load Capactiy (T): 10
3) Tip Load (T): 1.5
4) Mast Section dimension (m): 1.833×1.833×2.5 or 2*2*3m
5) Hoisting Mechanism Speed (m/min): 0-100 0-50
6) Motor power (kw): 45kw
7) Slewing Mechanism Speed (r/min): 0-0.6
8) Motor power (kw): 5.5×2
9) Trolleying Mechanism Speed (m/min): 0-60
10) Motor power (kw): 5.5

Specification

Model QTZ125 (6515) Tower Crane
Working Radius (m) 65
Max. Load Capacity (T) 10
Tip Load (T) 1.5
Free standing height (m) 50
Max. Height with anchorages (m) 180
Mast Section dimension (m)

1.833×1.833×2.5,
two angle steel with rib 125×12mm

Hoisting Mechanism


Speed (m/min) 0-100 0-50
Motor power (kw) 45

Slewing Mechanism


Speed (r/min) 0-0.6
Motor power (kw) 2*5.5

Trolleying Mechanism


Speed (m/min) 0-60
Motor power (kw) 5.5

Jacking-up System


Speed (m/min) 0.4
Motor power (kw) 5.5
Total Power (kw) 61.5
Power Supply 380V/50Hz, 220V/60Hz or others


Advantage of QTZ125 External Climbing Tower Crane
a. Updated PLC can change the analog signal into digital signal, which shorten the faults removal time, improve its accuracy and anti-interrency capacity.
b. RCV turning control can be stepless speed regulated, which will results in precise brake and easy maintenance.
c. Soft lifting will produce no shock, which will improve the tower crane safety and its service life.
d. The most advanced and stable PLC controller is totally intelligently controlled, which will provide safe protection against the operator's mis-operation. It has faults detecting and signal testing functions.
e. There are fewer intermediate control components, which result in easy maintenance and higher reliability and safety.
f. All electrical components are from world famous brands.

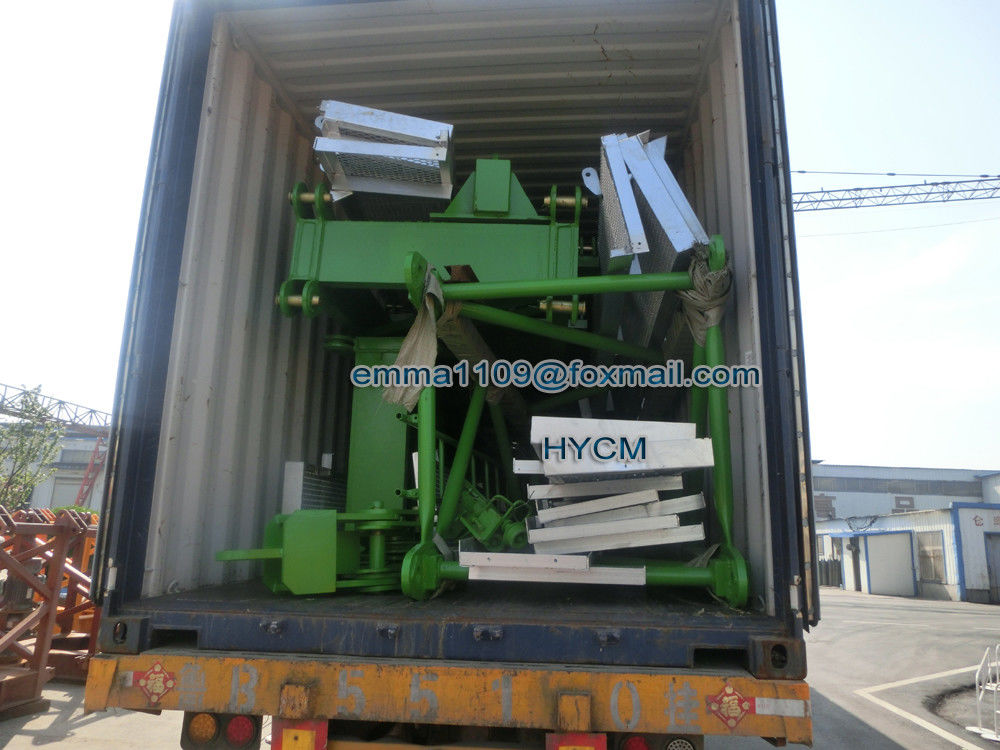

Pictures
QTZ125 (6515) Building Tower Crane 10t Load 50m Height Price 0QTZ125 (6515) Building Tower Crane 10t Load 50m Height Price 1
