Highlight:
2000kg construction material lifting hoist
, high rise construction material lifting hoist
, 2000kg construction material hoist
Condition: |
100% New |
Application: |
Buildings And Projects |
Type: |
Electric Cable Climbing |
Max. Load: |
2t |
Max. Height: |
150-200m |
Rated Speed: |
.34.4m/min |
Power supply: |
380V/50Hz Or According To Client's Requirements |
Motor Power: |
3*11kw |
Motor Brand: |
Xingxiang, Sanshang, Juli Or Other |
Mast Section Size: |
650*650*1508mm Or 800*800*1508mm |
SC200 2000kg Building Construction Hoist Aingle Elevator Cage
Simple parameter of SC200 Construction Hoist
Model: SC200 Single cage construction hoist
Rated load: 2000kg (2ton)
Raged passengers: 20
Motor power: 2*11kw
Rated lifting speed: 33m/min
Mast section size: 0.65*0.65*1.508m or 0.8*0.8*1.508m
Cage size: 3*1.3*2.3m or according to clients needs
Power supply: 380V/50Hz, 220V/60Hz or others
Max. Lifting height: 150m-200m
With all standard accessories
Specification of SC200 Construction Hoist
| Model |
SC200 |
| Payload capacity |
Up to 2000 kg |
| Speed |
33 m/min |
| Max. lifting height |
150 m (Increased lifting height on request.) |
| Cage width (internal) |
1.3 m & 1.5 m |
| Cage length (internal) |
3 m |
| Cage height (internal) |
2.2 m |
| Motor control |
Directly driven without inverter |
| Motor power |
2 x 11 kw |
| Power supply range |
380V, 50Hz or 60 Hz, 3 phase |
| Type of mast |
650mm, Tubular steel with integrated rack |
| Length mast section |
1.508 m |
| Weight mast section with 1 racks |
127 kg |
Description of SC200 Construction Hoist
1. Construction Hoist is also called as Man-Lift, Temporary elevator, Builder hoist, Passenger hoist or Construction elevator.
2. This type of hoist is commonly used on large scale construction projects, such as high-rise buildings or major hospitals.
3. There are many other uses for the construction elevator. Many other industries use the buckhoist for full-time operations, the purpose being to carry personnel, materials, and equipment quickly between the ground and higher floors, or between floors in the middle of a structure.
4. There are three types: Utility to move material, personnel to move personnel, and dual-rated, which can do both. SC series lifting both material and personnel.

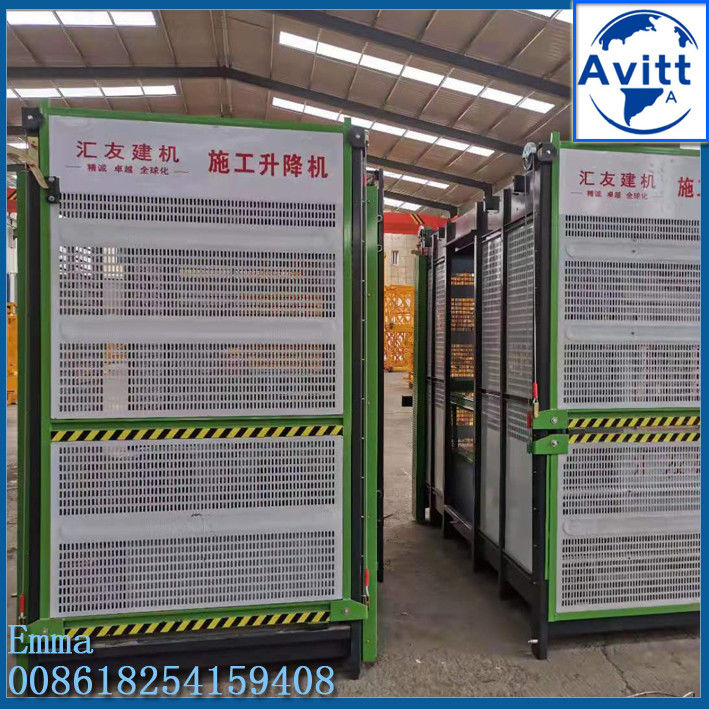

Pictures of SC200 Construction Hoist
