QTZ63 PT5210 Topless Tower Crane Used For Lifting Building Material

Product Details

Place of Origin: China

Brand Name: AVITT TOWER CRANE

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ63(PT5210) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $50000-54300 per set

Packaging Details: Naked packing, 5*40’HQ containers.

Delivery Time: 15 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 30 sets per month

Get Best Price
Product Details
Highlight:
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
5 T
Jib Length:
52 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5m (Block Type)
Main Chord:
135*10mm (square Tube)
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
5 T
Jib Length:
52 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5m (Block Type)
Main Chord:
135*10mm (square Tube)
Product Description

QTZ63 PT5210 Topless Tower Crane Used For Lifting Building Material



Technical Parameters
1) Nominal Lifting Moment: 630 KN.m
2) Working Range: 3-52 m
3) Max. Lifting Capacity: 5 t
4) Independent Standing Height: 35-40 m
5) Attached Standard Height: 150 m
6) Lifting Speed: 80/40/8.5 40/20/4.25 m/mim
7) Slewing Speed: 0.6 r/min

Specification



Rated lifting moment (kN.m) 630
Lifting height (m) Rope fall Free-standing stationary crane Anchored crane
α=2 35 150
α=4 35 150
Working radius (m) Max. working radius 52
Min. working radius 3
Max. lifting capacity (t) 5
Hoisting mechanism Rope fall α=2 α=4
Speed (m/min) 65/32/7.0 32/16/3.5
Lifting weight (t) 1 2.5 2.5 5
Power (kW) 18/18
Tolleying mechanism Speed (m/min) 0.7/0.35
Power (kW) 3.7
Slewing mechanism Speed (r/min) 0.4
Power (kW) 4



Main fetures

1. This Tower Cranes don’t have the “head” of conventional cranes

2. This tower crane has a horizontal jib with hoisting mechanis, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.

3. It is original in design, reliable in operation and satisfactory in shape.

4. Equipped with all necessary safety devices

5. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.

6. They can also help you save time on other jobsite duties by easily moving materials from one area to another.



Safety Devices
1. 3 obstacle lights
2. Height limiter
3. Slewing limiter
4. Range/ trolley limiter
5. Weight limiter
6. Moment limiter
7. Anemometer and block box(optional)


We value our customers; We value our customers’ customers
HYCM Focus on superior products (tower crane) and perfect service

Pictures:

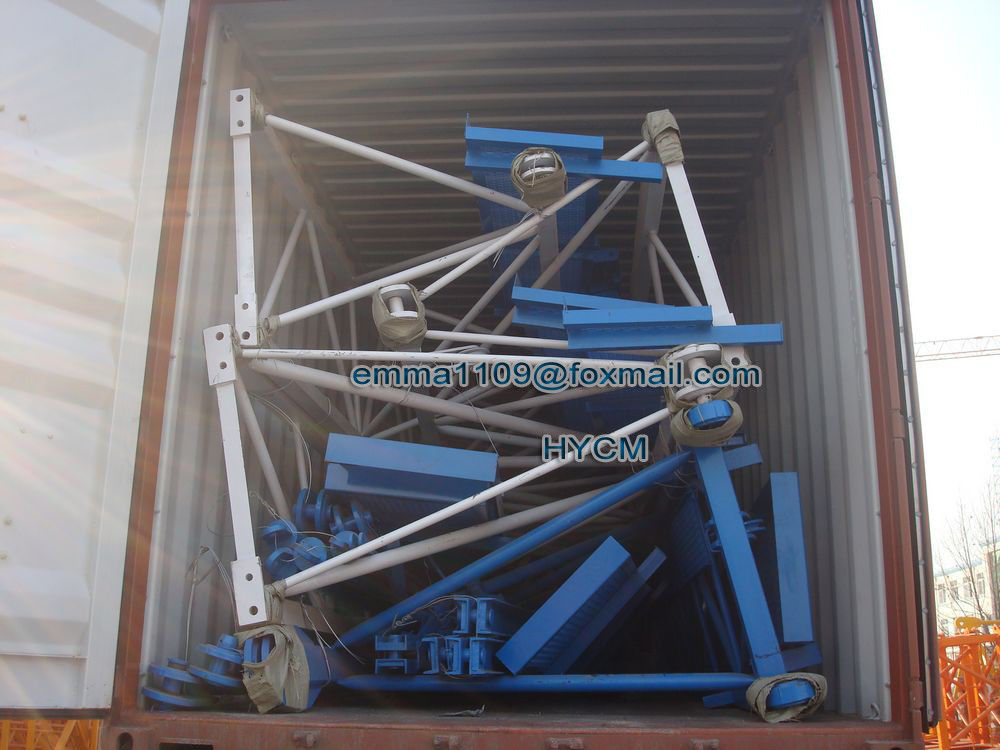

 QTZ63 PT5210 Topless Tower Crane Used For Lifting Building Material 0
