QTZ50(5008) Fixed Tower Crane 50 Meters Jib Length Specifications

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ50(5008) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $26600-28600 per set

Packaging Details: Naked packing, 3*40’HQ containers.

Delivery Time: 10 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 40 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
4 T
Jib Length:
50 M
Tip. Load:
0.8 T
Power supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Mast section:
1.6*1.6*2.2m
Main Chord:
160*12mm
After Sale Service:
Engineers Available To Service Overseas
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
4 T
Jib Length:
50 M
Tip. Load:
0.8 T
Power supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Mast section:
1.6*1.6*2.2m
Main Chord:
160*12mm
After Sale Service:
Engineers Available To Service Overseas
Product Description

QTZ50(5008) Fixed Tower Crane 50 Meters Jib Length Specifications



Performance parameters of QTZ50 Fixed Tower Crane

  • This tower crane is an hammerhead with topkit head tower crane, includes foundation frame, mast sections (tower body), climbing system, slewing units, horizontal lifting jib / boom, counter-jib, tower head, operation cab, three mechanisms, electric system and safety device.
  • The max. Boom length is 50m which consist of every 6meters and minimum length is 30m
  • This tower crane freestanding height is 29m and max.height is 120m with more mast section and 6sets anchorages.
  • The max. Load capacity is 4t and tip load at the end jib is 0.8t.



Specification of QTZ50 Fixed Tower Crane​



Rated Lifting Moment (KN.,) 500
Rated Loading Capacity (t) 5
Max. Lifting Load (t) 5
Tip Load (t) 0.8
Max. Lifting Height (m) 120
Freestanding height (m) 29
Rope length (m) 320
Span (m) 50
Working range (m) 3 to 50
Slewing speed (r/min) 0.6/0.3
Trolley peed (m/min) 38.6/25.5
Jacking-up speed (m/min) 0.4
Counter jib length (m) 12
Power supply 380V/50Hz or according to client's requirements
Power Capacity (kw) 24.9
Electric switch box Schneider
Hoisting speed (m/min) 32.14/15.6/3.5 65.14/32.57/7.0
Main Material (mm) 160*10 /angle steel /Q235B
Mast section (m) 1.6*1.6*2.2



Overview of QTZ50 Fixed Tower Crane

1. This type Tower Cranes with the “top head” also called Topkit tower crane, Cat Head tower crane, Kit Top tower crane ect.

2. This Small tower crane or mini tower crane used for lower story buildings construction, normally 5-15 lays.

3. This crane can save time on other jobsite duties by easily moving materials from one place to another.

4. They can be used in conjunction with other tower cranes at sites where space is confined

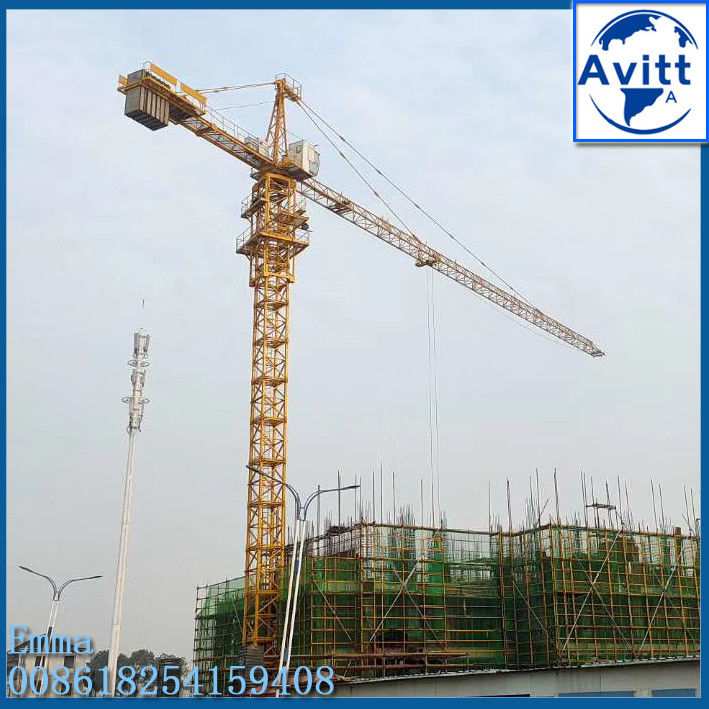

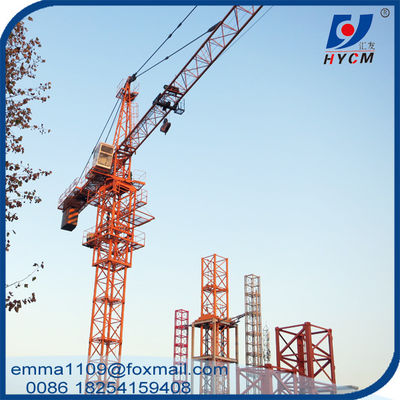

Pictures of QTZ50 Fixed Tower Crane​

QTZ50(5008) Fixed Tower Crane 50 Meters Jib Length Specifications 0

QTZ50(5008) Fixed Tower Crane 50 Meters Jib Length Specifications 1
