HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length

Product Details

Place of Origin: China

Brand Name: HYCM TOWER CRANE

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ80 Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $58200-61600 per set

Packaging Details: Naked packing, 5*40’HC containers per set QTZ80 Tower Crane

Delivery Time: 10 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 40 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 T
Jib Length:
56 M
Tip. Load:
1.2 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5 M (blcok Type)
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 T
Jib Length:
56 M
Tip. Load:
1.2 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5 M (blcok Type)
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Product Description

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length



Description

1. The Fixed Tower crane base fixed to the ground on a concrete foundation

2. The base is then attached to the mast sections which gives the crane its height.

3. Further the mast is attached to the slewing unit that allows the crane to slewing.

4. The horizontal jib (working arm) is the part of the crane that carries the load.

5. The counter-jib carries a counterweight while the jib suspends the load to and from the center of the crane.

6. The crane operator usually stay in the cabin at the top of the tower.

7. The lifting hook is operated by the operator using electric motors to manipulate wire rope cables through a system of sheaves which lift the building materials



Specification

Foundation fixed or mobile
Freestanding height 40 meters
Max. height 150 meters
Max. radius 56 meters
Jib end load 1.2 t
Max. load 6 T
Drum capacity 400 meters
Lifting speed 2r=80/40/8.5 4r=40/20/4.25 m/min
Slewing speed 0.6 r/min
Trolley speed 40/20 m/min
Power line voltage 380V/50Hz (60Hz)
Counter weight flange type (without concrete)
Mast section 1.6 x 1.6 x 2.5 m (135*12 square steel)



The process features



1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.

2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.

3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life



Why choose us

1. A professional tower crane supplier in China with 15 years experience

2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications

3. Hydraulic self-climbing mechanism

4. Variable-frequency slewing mechanism

5. Varialbe-speed frequency PLC control System

6. Operation data display screen and Safety monitoring system (Black Box)

7. Various safety devices


Pictures

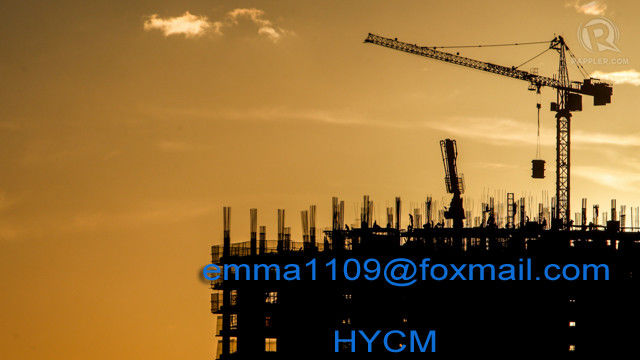

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 0

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 1



More products available: Construction Machinery

Tower Cranes

---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.

---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.

---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.

---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 2



SC Construction Man and Material Elevator

------ Rack and pinion elevator, special for the lifting work of construction Man and Material, 1000kg to 4000kg capacity, Passenger and Material, up to 200m. .

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 3



SS Building Material Lift / Hoist

------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 4



SJY Scissor Lift

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 5

Gantry Crane

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 6

Small Jib Crane

HYCM Top Slewing Types of Tower Cranes Specification TC5612 6T Load 56m Jib Length 7
