Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Hammer Head | Max. Load: | 5t |
| Boom: | 50m | Free Height: | 30m |
| Power supply: | 380V/50Hz Or According To Client's Requirements | Mast section: | 1.6*1.6*2.5 M |
| Color: | Yellow Or According To Clients Needs | Control System: | Normal One |

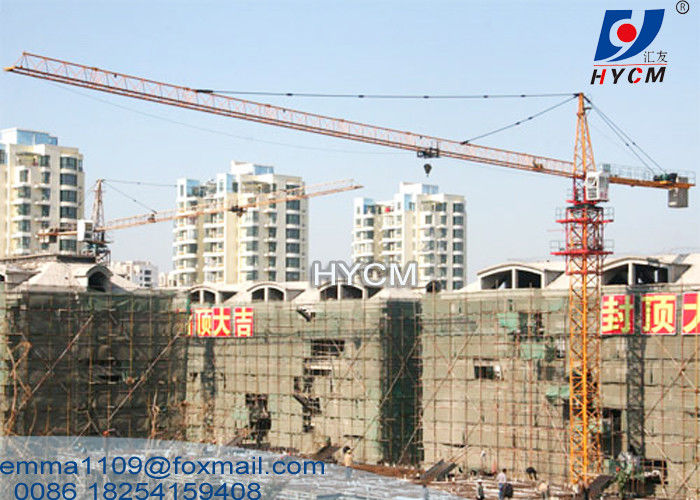

QTZ5010 Tower Kren 5t Max.load 50m Boom Specifications 30m Free Height
Short Parameter
1. Double slewing QTZ50(TC5010) Topkit Tower Crane
2. Type: fixed and external climbing
3. jib length: 50m
4. tip load: 1.0t
5. max.laod: 5t
6.freestanding height:30m
Service
a. Rapid response to any inquiry(within 3 hours) and 24 hours on-line service.
b. Competitive price which directly work with facotry. Welcome to visit us.
c. Professional inspection department to guarantee quality.
d. Engineers will go to construction site for guiding the installation and test-running for first time.
e. Easy-worn Spare parts is free supplied along with the tower crane.
f. 12 months super long time guarantee period.
Specification
| Model | QTZ50 (TC5010) Tower Crane | |
| Type | Fixed and external climbing type | |
| Working Radius (m) | 50 | |
| Max. Load Capacity (T) | 5 | |
| Tip Load (T) | 1.0 | |
| Freestanding height (m) | 30 | |
| Max. Height with anchorage (m) | 120 | |
| Mast Section dimension (m) | 1.6×1.6×2.5, Square 135×10mm | |
|
Hoisting Mechanism |
Speed (m/min) |
(a=2) 64.15/32.57/7.0 |
| Motor power (kw) | 15/15/4 | |
|
Slewing Mechanism |
Speed (r/min) | 0.70/0.35 |
| Motor power (kw) | 3.7*2 | |
|
Trolleying Mechanism |
Speed (m/min) | 38.6/25.2 |
| Motor power (kw) | 2.2/1.5 | |
|
Jacking-up System |
Speed (m/min) | 0.4 |
| Motor power (kw) | 4 | |
| Total Power (kw) | 24.9 | |
| Power Supply | 380V/50Hz or according to clients needs | |
Safety Features
1. Overload protection:If the material is over the capacity, the crane will give a sharp warning for protection itself
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Other types tower cranes, topless and luffing type are also available, besides, we accept OEM according to clients needs.
