SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter

China SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter supplier
SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter supplier SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter supplier SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter supplier

Large Image :  SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter

Product Details:

Place of Origin: China Mainlad
Brand Name: HYCM or XINGDAO
Certification: CE, ISO
Model Number: SC300 Construction Elevator

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $23400-26000 per set
Packaging Details: Naked packing, 1*40’HQ containers.
Delivery Time: 20 days after receiving the deposit or origin LC
Payment Terms: Western Union, L/C, T/T
Supply Ability: 40 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings Site
Type: Rack And Pinion Load: 300kg
Max. Height: 250 M Rated Speed: 0-40 Or Others
Power supply: 380V/50Hz Or According To Client's Requirements Motor Power: 3*15kw Or Others
Motor Brand: Shuangma,Xingxiang, Sanshang, Juli Or Other Mast Section Size: 650*650*1508mm Or 800*800*1508mm

SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter



Description

1. Construction Hoist is also called as Man-Lift, Temporary elevator, Builder hoist, Passenger hoist or Construction elevator.

2. This type of hoist is commonly used on large scale construction projects, such as high-rise buildings or major hospitals.

3. There are many other uses for the construction elevator. Many other industries use the buckhoist for full-time operations, the purpose being to carry personnel, materials, and equipment quickly between the ground and higher floors, or between floors in the middle of a structure.

4. There are three types: Utility to move material, personnel to move personnel, and dual-rated, which can do both. SC series lifting both material and personnel.


Specification

Model SC300
Payload capacity Up to 3000 kg
Speed m/min 0-40 others
Max. lifting height 150-400 m (Increased lifting height on request.)
Cage width (internal) 1.3 m & 1.5 m
Cage length (internal) 3 m
Cage height (internal) 2.2 m
Motor control Directly driven without inverter
Motor power 3 x 15 kw
Power supply range 380V, 50Hz or 60 Hz, 3 phase
Type of mast 650mm, Tubular steel with integrated rack
Length mast section 1.508 m
Weight mast section with 1 racks 127 kg


Completed safety measures
1. Safety Governor
2. Top limit switch and Bottom limit switch
3. 3-phase switch
4. Buffer Spring
5. Mechanical lock
6. Reducing device
7. Brake pieces
8. Overload Protector
9. Leakage Protection switch
10. Emergency button
11. Terminal and Final stopping switches
12. Guard Rail

Our advantage
1. 15 years of experience
2. Export to more than 20 countries with CE/ISO/GOST/CU-TR Certificates.
3. Stationary/Traveling and internal climbing type tower crane are available
4. Impeller blasting/rust protection paint
5. Advanced painting process
6. Strict and experience welding line
7. New designed mast, can be used to Internal and external climbing tower crane
8. Well known brand mechanism system, Schneider Electronic control system, Jjiangte and Jiuhe motor
9. Engineers available to service machinery overseas.
10. For warranty, it is 12 months from the B/L date. What's more, some free easy worn spare parts are provided together with the crane.

Pictures

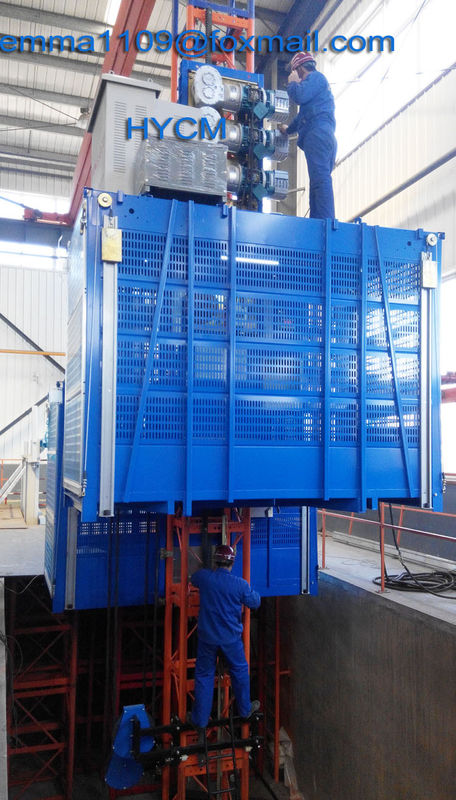

SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial LifterSC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter

More products available:
Tower Cranes
---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.
---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.
---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.
---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.
SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter

SS Building Material Lift / Hoist
------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.

ZLP Suspended Platform
SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter


SJY Scissor Lift
SC300 Single Cage 3000kg Rack And Pinion Elevator Building Industrial Lifter
