Payment & Shipping Terms:
|Condition:||100% New||Application:||Buildings Site|
|Type:||Schneider Or SINEE Inverter Control||Load:||2t|
|Max. Height:||150-200 M||Rated Speed:||0-33 0-60 0-90 Or Others|
|Power supply:||380V/50Hz Or According To Client's Requirements||Motor Power:||3*11kw Or 2*13kw|
|Motor Brand:||Xingxiang, Sanshang, Juli Or Other||Mast Section Size:||650*650*1508mm Or 800*800*1508mm|

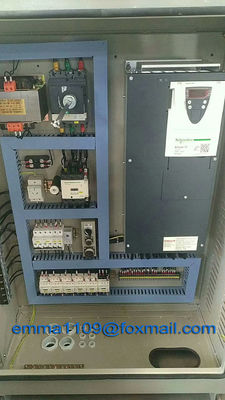

2T Building Hoist Elevator SC200 Speed Schneider or SINEE inverter Control
1. Construction Hoist is also called as Man-Lift, Temporary elevator, Builder hoist, Passenger hoist or Construction elevator.
2. This type of hoist is commonly used on large scale construction projects, such as high-rise buildings or major hospitals.
3. There are many other uses for the construction elevator. Many other industries use the buckhoist for full-time operations, the purpose being to carry personnel, materials, and equipment quickly between the ground and higher floors, or between floors in the middle of a structure.
4. There are three types: Utility to move material, personnel to move personnel, and dual-rated, which can do both. SC series lifting both material and personnel.
|Payload capacity||Up to 2000 kg|
|Speed m/min||33, 0-33, 0-46, 0-96 or others|
|Max. lifting height||150 m (Increased lifting height on request.)|
|Cage width (internal)||1.3 m & 1.5 m|
|Cage length (internal)||3 m|
|Cage height (internal)||2.2 m|
|Motor control||Directly driven without inverter|
|Motor power||2 x 11 kw|
|Power supply range||380V, 50Hz or 60 Hz, 3 phase|
|Type of mast||650mm, Tubular steel with integrated rack|
|Length mast section||1.508 m|
|Weight mast section with 1 racks||127 kg|
Completed safety measures
1. Safety Governor
2. Top limit switch and Bottom limit switch
3. 3-phase switch
4. Buffer Spring
5. Mechanical lock
6. Reducing device
7. Brake pieces
8. Overload Protector
9. Leakage Protection switch
10. Emergency button
11. Terminal and Final stopping switches
12. Guard Rail
1. 15 years of experience in supplying new external climbing tower crane with HYCM Brand.
2. Export to more than 20 countries with CE/ISO/GOST/CU-TR Certificates.
3. Stationary/Traveling and internal climbing type tower crane are available
4. Impeller blasting/rust protection paint
5. Advanced painting process
6. Strict and experience welding line
7. New designed mast, can be used to Internal and external climbing tower crane
8. Well known brand mechanism system, Schneider Electronic control system, Jjiangte and Jiuhe motor
9. Engineers available to service machinery overseas.
10. For warranty, it is 12 months from the B/L date. What's more, some free easy worn spare parts are provided together with the crane.
More products available:
---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.
---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.
---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.
---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.
SS Building Material Lift / Hoist
------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.
ZLP Suspended Platform
SJY Scissor Lift
