|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Top Slewing||Max. Load:||8 T|
|Lifting Jib:||50 M||Tip Load:||1.5 T|
|Power supply:||380V/50Hz Or Others||Mast section:||1.835*1.8335*2.5 M (blcok Type)|
|Electric Box:||Schneider||Free Height:||45m|

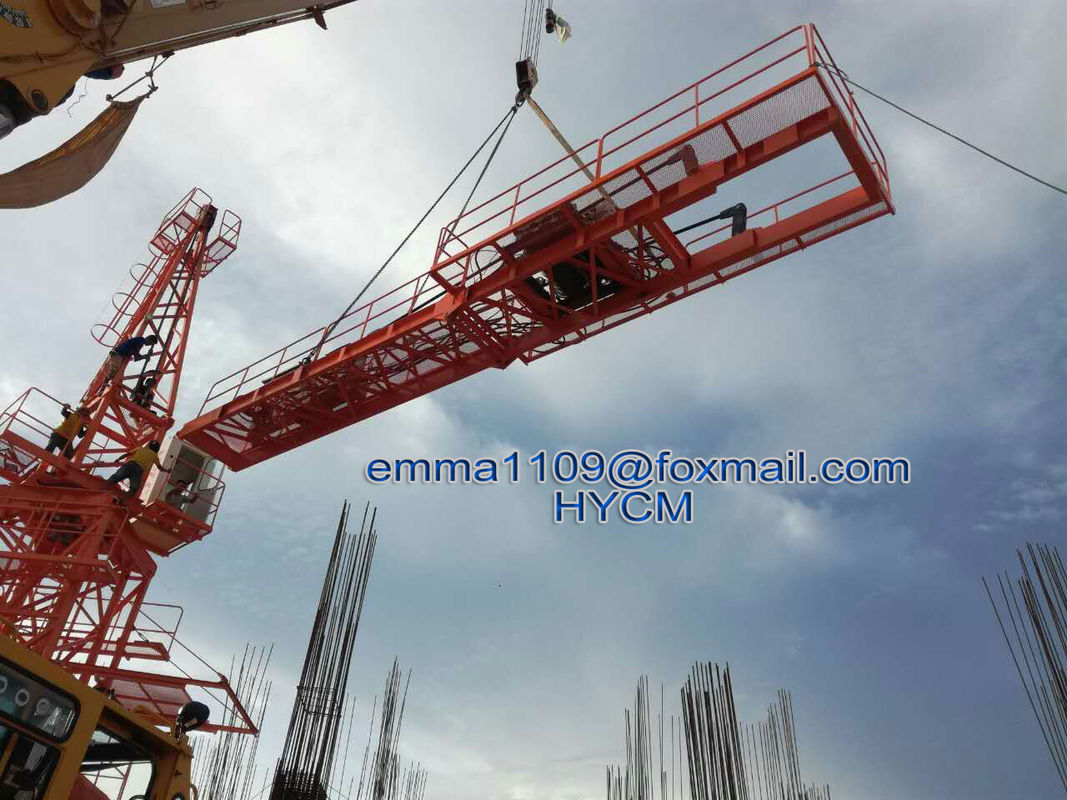

QTZ80(5015) Topkit Head Tower Crain Top Slewing Climbing Building Crane
1.QTZ80(TC5015) Topkit Tower Crane
2. Type: fixed and external climbing
3. jib length:50m
4. tip load:1.5t
5. max.laod: 8t
1. The Fixed Tower crane base fixed to the ground on a concrete foundation
2. The base is then attached to the mast sections which gives the crane its height.
3. Further the mast is attached to the slewing unit that allows the crane to slewing.
4. The horizontal jib (working arm) is the part of the crane that carries the load.
5. The counter-jib carries a counterweight while the jib suspends the load to and from the center of the crane.
6. The crane operator usually stay in the cabin at the top of the tower.
7. The lifting hook is operated by the operator using electric motors to manipulate wire rope cables through a system of sheaves which lift the building materials
|Foundation||fixed or mobile|
|Freestanding height||45 meters|
|Max. height||150 meters|
|Max. radius||50 meters|
|Jib end load||1.5 t|
|Max. load||8 T|
|Drum capacity||400 meters|
|Lifting speed||2r=80/40/8.5 4r=40/20/4.25 m/min|
|Slewing speed||0.6 r/min|
|Trolley speed||40/20 m/min|
|Power line voltage||380V/50Hz (60Hz)|
|Counter weight||Steel-structured frame (without concrete)|
|Mast section||1.835 x 1.835 x 2.5 m (135*12 square steel)|
The process features
1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.
2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.
3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life
Why choose us
1. A professional tower crane supplier in China with 16 years experience
2. Exported to more than 20 countries with ISO9001 & CE, GOST, EAC Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. With full safety devices to keep workers safey (safety first)
1. Focusing on tower crane exporting for 15 years;
2. Preferential ex-factory price, excellent product quality and good after-sales service are our pursuit;
3. Our tower cranes had exported to more than 20 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar and Algeria etc.
4. Factory visit is welcomed.
5. If you need, engineers will go to the construction site for guiding the installation and test-running.
6. Easy-worn Spare parts are free supplied along with the tower crane.
7. 12 months super long time guarantee period.
