Payment & Shipping Terms:
|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Electric Cable Climbing||Max. Load:||0.5t|
|Max. Height:||150-200m||Rated Speed:||33m/min|
|Power supply:||380V/50Hz Or According To Client's Requirements||Motor Power:||1*11kw|
|Motor Brand:||Xingxiang, Shuangma,sanshang, Juli Or Other||Mast Section Size:||650*650*1508mm|

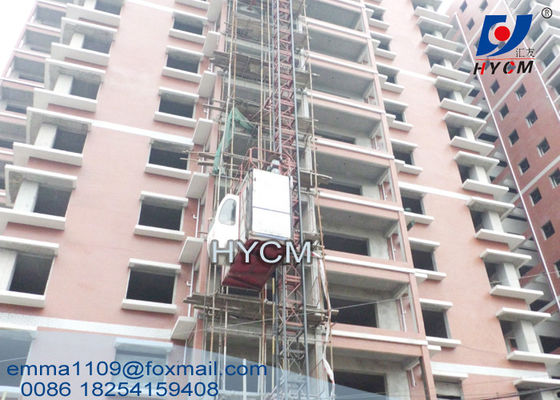

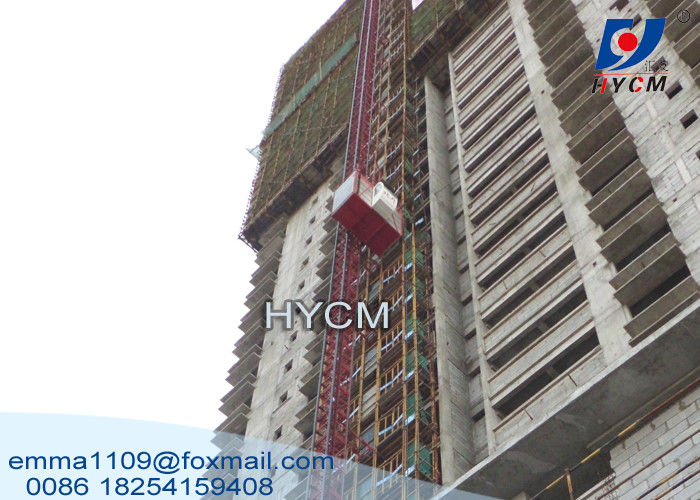

500 kg Small Construction Hoist Elevator with Inverter control stable speed
1. Use rack-and-pinion transmission technology.
2. CNC Plasma/Flame Cutting Machine
3. Mast Section Robot welding line
4. Impeller Blasting
5. Baking painting
6. Full set safety device
7. Accepted customer’s OEM
|Payload capacity||Up to 500 kg|
|Max. lifting height||150 m (Increased lifting height on request.)|
|Cage width (internal)||1 m|
|Cage length (internal)||1.2 m|
|Cage height (internal)||2.2 m|
|Motor control||Directly driven without inverter|
|Motor power||1 x 11 kw|
|Safety device||Mechanical interlocking door system to guarantee the highest safety standards.|
|Power supply range||380V, 50Hz or 60 Hz, 3 phase|
|Type of mast||0.65*0.65*1.508m|
|Length mast section||1.508 m|
1. The mast sections of construction hoist adopt welding robot to weld, reliable in price and elegant in appearance.
2. All the structures adopt reaming impeller blasting technology, the adhesion of surface painting is good.
3. The wall around cage can be fixed by Punched Aluminum plate, Punched zinc plate, steel wire mesh.
4. Professional manufacturer provide the transmission gear, high mechanical efficiency, extended service life, steady performance.
5. Overload protection, variety of limiter and mechanical chain device are reliable and complete, optimal safety device select SAJ30-1.2, which restrict the excessive downward movement of the cage and prevents cage falling accidents.
6. Variable-frequency construction elevator are safe, stead, comfort, start electricity is smaller then the working electricity and efficient.
