OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada

China OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada supplier
OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada supplier OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada supplier OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada supplier

Large Image :  OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada

Product Details:

Place of Origin: China
Brand Name: HYCM TOWER CRANE
Certification: CE, ISO, GOST, CU-TR
Model Number: TC6520 Topkit Tower Crane

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $149500-154500 per set
Packaging Details: Naked packing, 7*40;HQ containers.
Delivery Time: 30 days after receiving the deposit or origin LC
Payment Terms: TT, LC
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Price: CIF Halifax NS Canada Max. Load: 10 Ton
Jib: 215 Ft Tip Load: 2t
Power: 60Hz Mast section: 2*2*3 M
Electric Box: Schneider Power Supply: 380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need

OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada


Description

1. TC6520 Tower Cranes are ideal for medium-sized and large construction projects, for example in industry and plant construction.

2. This Tower Cranes can handle high load capacities and have an unmistakable silhouette. The various size classes prove their worth for medium and large construction projects, for example for industrial and plant construction.

3. Tower cranes are also suitable for use on very high buildings. Our customers benefit from enormous hoisting heights and hoist speeds.

Specification

Rated Lifting Moment (KN.M) 2300
Rated Loading Capacity (t) 10
Max. Lifting Load (t) 10
Span (m) 65
Working range (m) 3 to 65
Tip Load (t) 2.0
Max. Lifting Height (m) 180
Free standing height (m) 60
Rope length (m) 500
Slewing speed (r/min) 0-0.6
Trolley peed (m/min) 0-60
Jacking-up speed (m/min) 0.4
Power supply 380V/50Hz or according to client's requirements
Power Capacity (kw) 61.5
Electric switch box Schneider
Main Material (mm) 200*20 / angle steel
Mast section (m) 2*2*3 (split type)


Characteristics
1) Lifting multiplying factor switch-over which could achieve high speed for light load and low speed for heavy load.
2) Our tower sections are exchangeable, which provide our customers more conveniences.
3) We adopt to use Dual drawbars structure on lifting boom, which enables the lifting boom to be under no stress at lifting surface other than uniaxial stress, and moreover, it gets rid of the stress peak. It greatly improves the fatigue safety performance of lifting boom.
4) Adopts VVVF stepless speed variation device for lifting, radius changing and slewing mechanisms, to make sure it works steadily and effectively, it also lowers the maintenance cost.
It's lifting height is obviously increased thanks to its self-erecting and wall attached function.

It is applicable for construction of different industrial, commercial, office, and civil building lower than 120m, and becomes an ideal service-building machine at home.

Advantage
1. Export to more than 20 countries with CE/ ISO/ GOST Certifications by skilled sales team.
2. Mobile and internal climbing type tower cranes are also offering as new designed mast sections.
3. High Quality control: blasting and rust protection painting with advanced painting process. Strict and experience welding line.
4. Well known Mechanisms system and Schneider Electronic control system.
5. Engineers are available to service machinery overseas within 12 months warranty from the B/L date.
6. One set free easy-worn spare parts are provided with per set tower cranes.



RAQ

1. Are you a manufacturer or a trading company?

We are as a professional manufacturer / factory since 2002 year for 16 years.

2. What is your advantage?

1) We are a manufacturer, so the price is more competitive than the trading company.

2) It is more effective to communicate with the factory, saving more time for you.

3) Timely after sales service

4) We also produce other construction machinery such as construction hoists, derrick cranes and ZLP Suspended Platform to meet your requirements.

3. How do you guarantee your product quality?

We have our professional testing department , and will test the machine all the progress, and will test it after finished and before delivery.

4. I plan to label our logo on your products, is that possible?

Sure it is ok. OEM is available for us. Just send your logo, brand name or picture to us.

5. How about the warranty period ?

The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tie parts), improper operation and other man made reasons are excluded.


 Pictures

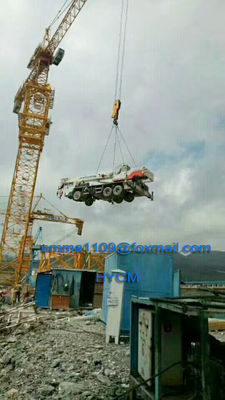

OEM TC6520 Topkit Tower Crane 60Hz Power CIF Halifax NS Canada
