Not Used Topkit Tower Crane 50 meter Jib 1.5t Tip Load Specs Factory Cost

Product Details

Place of Origin: China

Brand Name: HYCM TOWER CRANE

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ5015 Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $58200-61600 per set

Packaging Details: Naked packing, 5*40’HQ containers.

Delivery Time: 10 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 40 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New Not Used
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 Ton
Jib:
50 Meter
Tip. Load:
1.5 T
Power supply:
380V/50Hz Or Others
Mast section:
1.6*1.6*2.5 M (blcok Type)
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Condition:
100% New Not Used
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 Ton
Jib:
50 Meter
Tip. Load:
1.5 T
Power supply:
380V/50Hz Or Others
Mast section:
1.6*1.6*2.5 M (blcok Type)
Electric Box:
Schneider
Power Supply:
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need
Product Description

Not Used Topkit Tower Crane 50 meter Jib 1.5t Tip Load Specs Factory Cost



Shot parameters

1.QTZ80(TC5015) Topkit Tower Crane

2. Type: fixed and external climbing

3. jib length: 50m

4. tip load: 1.5t

5. max.laod: 6t

6.freestanding height:40m



Description

1. The Fixed Tower crane base fixed to the ground on a concrete foundation

2. The base is then attached to the mast sections which gives the crane its height.

3. Further the mast is attached to the slewing unit that allows the crane to slewing.

4. The horizontal jib (working arm) is the part of the crane that carries the load.

5. The counter-jib carries a counterweight while the jib suspends the load to and from the center of the crane.

6. The crane operator usually stay in the cabin at the top of the tower.

7. The lifting hook is operated by the operator using electric motors to manipulate wire rope cables through a system of sheaves which lift the building materials



Specification

Foundation fixed or mobile
Freestanding height 40 meters
Max. height 150 meters
Max. radius 55 meters
Jib end load 1.5 t
Max. load 6 T
Drum capacity 400 meters
Lifting speed 2r=80/40/8.5 4r=40/20/4.25 m/min
Slewing speed 0.6 r/min
Trolley speed 40/20 m/min
Power line voltage 380V/50Hz (60Hz)
Counter weight Steel-structured frame (without concrete)
Mast section 1.68 x 1.68 x 2.5 m (135*12 square steel)



The process features



1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.

2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.

3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life



Why choose us

1. A professional tower crane supplier in China with 15 years experience

2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications

3. Hydraulic self-climbing mechanism

4. Variable-frequency slewing mechanism

5. Varialbe-speed frequency PLC control System

6. Operation data display screen and Safety monitoring system (Black Box)

7. Various safety devices

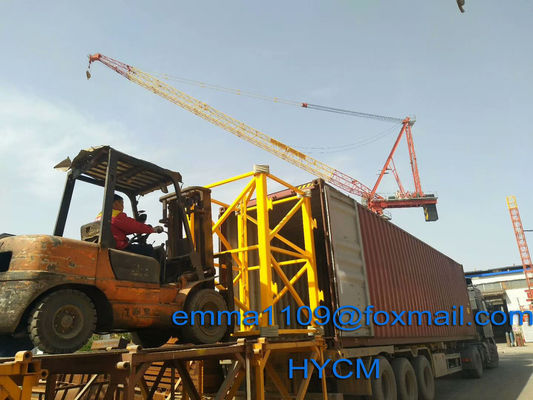

Pictures
