|Condition:||100% New||Application:||10 Story Building|
|Type:||Fixed With Hammer Head||Load:||5T|
|Power supply:||380V/50Hz Or According To Client's Requirements||Mast sectionS:||2.5m Block|
|Electric Box:||Schneider||Power Supply:||380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need|

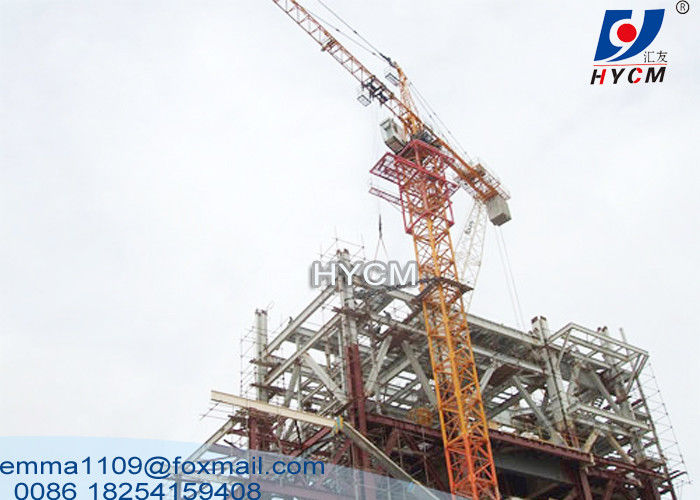

QTZ5013 Hammerhead Tower Crane 2.5m Block Mast Sections 10 Story Building
1.QTZ63(TC5013) Topkit Tower Crane
2. Type: fixed and external climbing
3. jib length:50m
4. tip load:1.1.3t
5. max.laod: 5t
|Model||QTZ63 (5013) Tower Crane|
|Working Radius (m)||50|
|Max. Load Capacity (T)||5|
|Tip Load (T)||1.3|
|Freestanding height (m)||35|
|Max. Height with anchorages (m)||150|
|Mast Section dimension (m)||1.6×1.6×2.5, square tube 135×10mm|
|Hoisting Mechanis||Speed (m/min)||70/35/7.0, 35/17/3.5|
|Motor power (kw)||18/18/5|
|Slewing Mechanism||Speed (r/min)||0.7/0.35|
|Motor power (kw)||2*3.7|
|Trolleying Mechanism||Speed (m/min)||38.6/25.2|
|Motor power (kw)||1.5/2.2|
|Jacking-up System||Speed (m/min)||0.4|
|Motor power (kw)||4|
|Total Power (kw)||24.9|
|Power Supply||380V/50Hz, 415/50Hz, 220V/60Hz, ect|
1. 15 years of experience in supplying all kinds of tower cranes.
2. Export to more than 20 countries with CE/ ISO/ GOST/ CU-TR Certifications.
3. Mobile and internal climbing type tower cranes are also offering.
4. Rost blasting and rust protection painting with advanced painting process.
5. Strict and experience welding line.
6. New designed mast, can be also used to Internal Climbing tower cranes.
7. Well known brand mechanism system, Schneider Electronic control system.
8. Engineers are available to service machinery overseas.
9. For long warranty: 12 months from the B/L date.
besides, some free easy-worn spare parts are provided with the crane.
1. Durable and economical, HYCM tower crane is widely used at major construction sites, lifting steel, generators, large tools and other building materials.
2. Our tower crane adopts high-end configuration and advanced technologies to ensure their high performance, safety, easy operation and maintenance.
1): Hoist height limit
2): Over speed limit
3): Over load limit
4): Lifting moment limit
5): Slewing angle limit
6): Emergency stop button
7): Obstruction light (tip of jib, tower head)
8): Wind lock device.
