Payment & Shipping Terms:
|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Top Slewing Crane||Max.Load:||8tons|
|Boom Length:||165ft||Tip. Load:||2.5t|
|Power supply:||380V/50Hz Or According To Client's Requirements||Mast section:||1.835*1.835*2.5m Or 2*2*3m|
|Electric Box:||Schneider||Power Supply:||380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need|

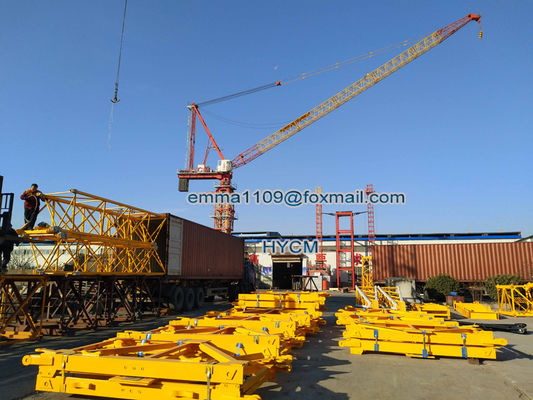

8tons TC5025 Topkit Tower Crane Top Slewing Crane 165ft Boom Length
Application field: Building height up to 50 floors (150m), loading capacity up to 8t, jib length is 50m or short. If you have some special requirements, we will design new type of tower crane for you.
Abroad markets: The Middle East Regions, Southeast Asia, Africa, Russia, ect.
Certificate: ISO9001-2008, CE, GOST
Package: nude in 6*40"HQ or 7*40’HQ container
Payment terms: 30% in advance, 70% balance payment before shipment date
Delivery time: 30 workdays after receiving 30% advanced payment
Tower cranes are also suitable for use on very high buildings. Our customers benefit from enormous hoisting heights and hoist speeds.
|ated Lifting Moment||1000KN.m|
|Rated Loading Capacity||8t|
|Max. Lifting Load||8t|
|Max. Lifting Height||150m|
|Free standing height||45m|
|Trolley speed||40/20 m/min|
|Jacking-up speed||0.4 m/min|
|Hoisting speed(m/min)||0-80 0-40|
|Power supply||380V/50Hz or according to client's requirments|
|Electric switch box||Schneider|
|Main materials||135*12mm or 200*20mm|
|Mast section dimensions||1.835*1.835*2.5 m or 2*2*3m|
1. Are you a manufacturer or a trading company?
We are a manufacturer for 15 years.
2. What is your advantage?
First we are a manufacturer, so the price is more competitive than the trading company.
Second, it is more effective to communicate with the factory, saving more time for you.
Third, we also produce other construction machinery such as construction hoists, derrick cranes and ZLP Suspended Platform to meet your requirements.
3. How do you guarantee your product quality?
We have our professional testing department , and will test the machine all the progress, and will test it after finished and before delivery.
4. I plan to label our logo on your products, is that possible?
Sure it is ok. OEM is available for us. Just send your logo, brand name or picture to us.
5. How about the warranty period ?
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tie parts), improper operation and other man made reasons are excluded.
Automatic impeller blasting and spraying assembly line
Adopt the world first-class automatic spraying assembly line. The large structure parts are dealt with impeller blasting before spraying. That remove steel surface oxides and welding spatters effectively, eliminates the internal stress producing in welding process, increases the parts’ anti-figure strength and steel surface hardness, increases painting adhesion and prolong the service life of the product maximizes efficiency and saves energy.
Strict quality examination
The strict quality test, raw material test, test of welding, checking welding quality of appearance, assembly and adjustment of jib, tower head and pivot in factory.
