Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | 600ft Building Projects Construction |
|---|---|---|---|
| Type: | Fixed External Climbing | Max. Load Capacity: | 12T |
| Working Boom: | 60mts | Rated Moment: | 1600KN.M |
| Power supply: | 380V/50Hz Or According To Client's Requirements | Mast section: | 1.833*1.833*2.5m Or 2*2*3m |
| Electric Box: | Schneider | Power Supply: | 380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need |
Max. Load Capacity 12t Topkit Tower Crane 60mts Working Boom TC6024
Simple Description:
1.QTZ160(TC6024) Topkit Tower Crane
2. Type: fixed and external climbing
3. Jib length: 60m
4. Tip load:2.4t
5. Max.laod:12t
6.Freestanding height:50m
Specification
| Rated Lifting Moment (KN.M) | 1600 |
| Rated Loading Capacity (t) | 12 |
| Max. Lifting Load (t) | 12 |
| Tip Load (t) | 2.4 |
| Max. Lifting Height (m) | 200 |
| Free standing height (m) | 50 |
| Rope length (m) | 500 |
| Span (m) | 60 |
| Working range (m) | 3 to 60 |
| Slewing speed (r/min) | 0-0.6 |
| Trolley peed (m/min) | 0-60 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 14.6 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 61.5 |
| Electric switch box | Schneider |
| Main Material (mm) | 125*14 /two angle steel with rib or 200*20 |
| Mast section (m) | 1.835*1.835*2.5 or 2*2*3 |
Introduction:
1. This new class crane expands maximum jib length to 60m and increases load charts over previous models offering the same lift capacity on the whole jib length, with a maximum load at the full length of the jib tip of 2.4 tons.
2. The TC6024 gives the market a flexible solution to meet complex lifting challenges. Fully committed to the tower crane business, we are accelerating new tower crane product development to meet our customers’ needs.
3. This includes a new tower crane cabin that will advance operating efficiency and comfort for our new crane.
4. Offering a 1600 KN.M load moment, the new crane delivers extremely high lift capacities throughout its load chart and 10 different jib configurations from 6 M to 60 M meet varying jobsite needs.
5. Its hoist, slewing and trolley speeds allow operators to quickly and precisely move and position heavy loads. All jib sections come preassembled with a life line for quick, safe installation at height, while stronger jib walkways deliver long-lasting quality.
6. It can be configured with block or slit mast section or thanks to the transfer masts with the combination of them. Here offers superior value for the customer, as this gives companies operating multiple tower crane models the ability to efficiently manage component inventory and cost effectively meet their tower needs
RAQ
1. Are you a manufacturer or a trading company?
We are as a professional manufacturer / factory since 2002 year for 15 years.
2. What is your advantage?
1) We are a manufacturer, so the price is more competitive than the trading company.
2) It is more effective to communicate with the factory, saving more time for you.
3) Timely after sales service
4) We also produce other construction machinery such as construction hoists, derrick cranes and ZLP Suspended Platform to meet your requirements.
3. How do you guarantee your product quality?
We have our professional testing department , and will test the machine all the progress, and will test it after finished and before delivery.

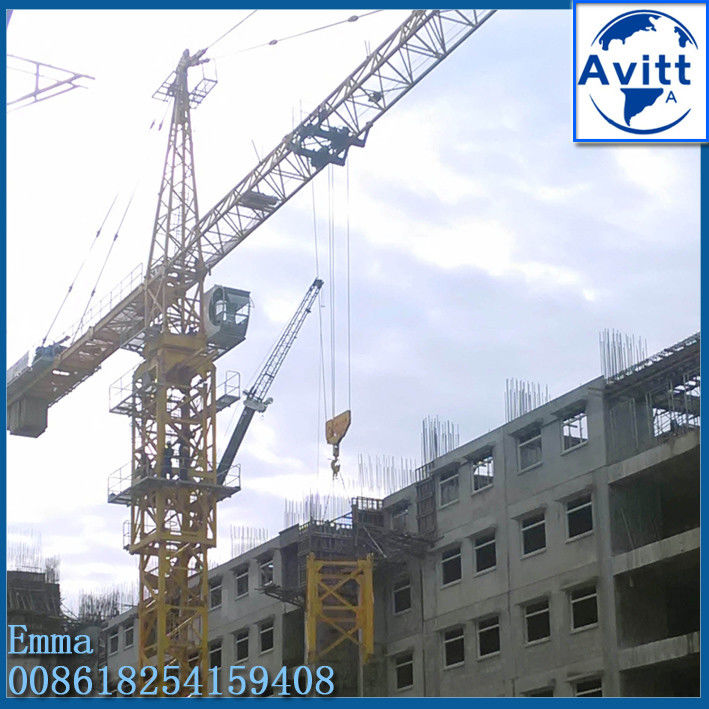

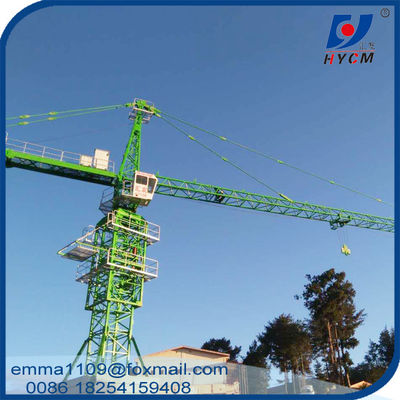

Pictures
