| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Fixed With Tower Head | Max. Load: | 25 T |
| Jib Length: | 75 M | Tip. Load: | 5.0 T |
| Mast section: | 2.5*2.5*6 M | Electric Box: | Schneider |
| Power Supply: | 380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need | Color: | Yellow, Red Or According To Clients Needs |

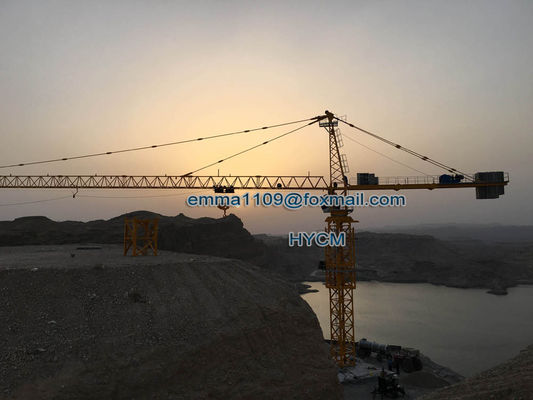

25T TC7550 75M Jib Arm Huge Topkit Types of Tower Cranes 5.0T Tip Load
Short Parameters
1.QTZ500(TC7550) Topkit Tower Crane
2. Type: fixed and external climbing
3. jib length: 75m
4. tip load:5.0t
5. max.laod:25t
6. freestanding height:73m
Specification
| Rated Lifting Moment (KN.M) | 5000 |
| Model | QTZ500(7550) Tower Crane |
| Max. Lifting Load (t) | 25 |
| Tip Load (t) | 5.0 |
| Max. Lifting Height (m) | 200 |
| Free standing height (m) | 73 |
| Rope length (m) | 600 |
| Span (m) | 75 |
| Working range (m) | 3 to 75 |
| Slewing speed (r/min) | 0-0.57 |
| Trolley peed (m/min) | 0-78 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 25.4 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 119 |
| Electric switch box | Schneider |
| Main Material (mm) | H steel 293*266 |
| Mast section (m) | 2.5*2.5*6 |
Features
Durable, safe and low-maintenance cranes live up to the highest manufacturing standards. They are durable, operator-friendly, safe and have low maintenance requirements.
Quality materials for durability
Our components are traceable back to original premium-quality manufacturers, ensuring that they can easily be replaced when necessary. The quality of our components assure good resistance to fractures under conditions of high loading and low temperatures.
Quality steel mill-certified to European EN standards.
High-quality components from suppliers represented worldwide.
Protected: For safeguarding, all components are fitted into housing of the highest quality. Fully enclosed motors - IP55 - ensure long lasting motor insulation.
Easily identifiable: Cables and components are numbered or marked for easy identification, reducing maintenance time and costs.
Efficient: Virtually all internal electrical installation is done using multi-plug connections which reduces erection time.
Safety devices:
1): Hoist height limit
2): Over speed limit
3): Over load limit
4): Lifting moment limit
5): Slewing angle limit
7): Obstruction light (tip of jib, tower head)
8): Wind lock device.
The process features
1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.
2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.
3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life
Pictures
