Payment & Shipping Terms:
|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Electric Cable Climbing||Max. Load:||2 T|
|Max. Height:||150-200 M||Rated Speed:||33m/min Or 0-33 M/min|
|Power supply:||380V/50Hz Or According To Client's Requirements||Motor Power:||2*2*11 Kw|
|Motor Brand:||Xingxiang, Sanshang, Juli Or Other||Mast Section Size:||650*650*1508 Mm|

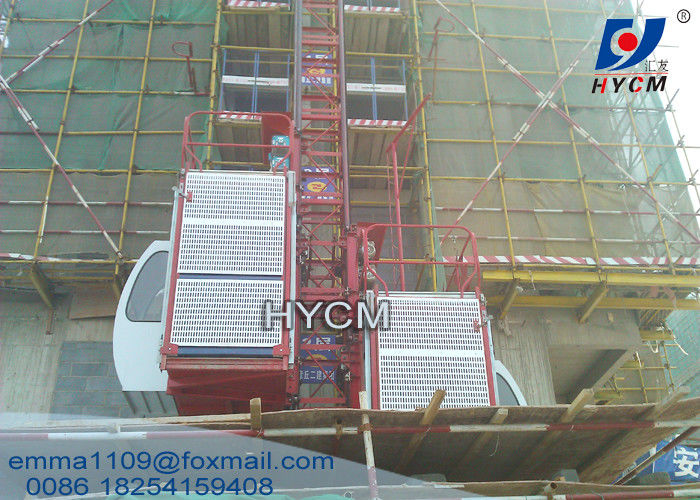

SC100/100 2*1000KG Twin Cage Construction Elevator Building Hoist Electric Mast Climbing
1. Rated load: 2*1000kg=2tons
2. Rated speed: 33 or 0-33m/min (VFD Control)
3. Mast Section height: 50-200m
4. Cage side: 3*1.5*2.2m
5. Motor Power: 2*3*11kw or 2*2*15kw
6. Power Supply: 380V/50Hz
|Model||SC100/100 - Frequency|
|Payload capacity||Up to 2 x 1,000 kg|
|Speed||33 or 0-33 m/min (directly driven with inverter)|
|Max. lifting height||400 m (Increased lifting height on request.)|
|Cage width (internal)||1.3 m & 1.5 m|
|Cage length (internal)||3 m|
|Cage height (internal)||2.2 m|
|Motor control||Frequency controlled|
|Motor power||2 x 2 x 18.8 kw or 2 x 2 x 11 kw|
|Safety device||Mechanical interlocking door system to guarantee the highest safety standards.|
|Power supply range||380V, 50Hz or 60 Hz, 3 phase|
|Type of mast||650mm Tubular steel with integrated rack|
|Length mast section||1.508 m|
|Weight mast section with 2 racks||158 kg|
Good quality is assured by advanced manufacturing technology.
And all products will be checked by our quality-control manager.
We provide standard, strong, protective package for our products to prevent it
from outer damage.
For our construction hoist, we provide 1 year warranty period and quick replace service.
Detailed information, specific model and price of products will be provided quickly after receiving your inquiry.
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched aluminum plate. So that it is lightweight and artistic appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversion construction elevator is safer, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
7. The hoist can be customized according to requirements (drawing, specifications and so on).
