Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Electric Cable Climbing | Max. Load: | 1-4 T |
| Max. Height: | 150-200 M | Rated Speed: | 34.4 Or 0-36 M/min |
| Power supply: | 380V/50Hz Or According To Client's Requirements | Motor Power: | 2*11kw Or 2*3*11 Kw |
| Motor Brand: | Xingxiang, Sanshang, Juli Or Other | Mast Section Size: | 650*650*1508 Mm |

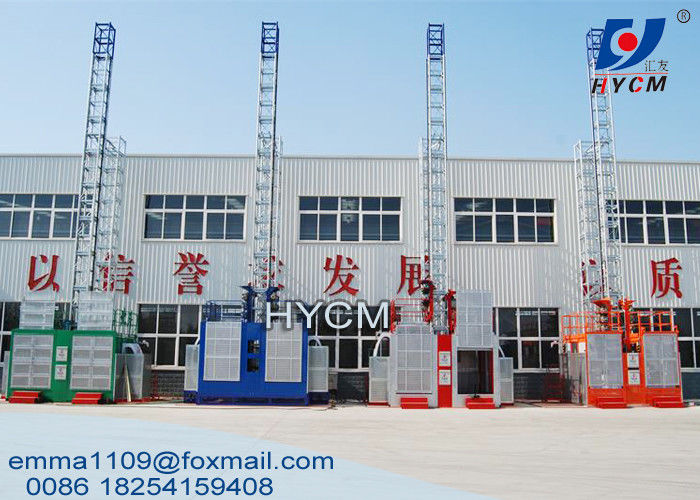

SC Building Hoist Lifter with Different Speed 33m/min 0-33m/min 0-60m/min
Our construction hoist advantage
1. Cage: Integral style cage, a whole welded steel structure, compact and sturdy. Roller, back wheel ect. own production, bearing for the best domestic bearings, Aluminum peripherals which is light, no vibration, no noise, etc. also can be designed according to customer requirements.
Cage door: can be designed according to customer requirements into a single, double or ramp type.
2. Motor: Shuang Ma Brand configuration, warranty replacement for 2 years from leave factory date.
Reducer: CASK Brand Gear box configuration, warranty replacement for 2 years from leave factory date.
3. Anti-fall safety device SAJ40-1.2: Shanghai Construction Institute, the domestic well-known brands
4. Electric: all Schneider, except transformers (Schneider does not produce transformers)
5. Mast section: Robot welding, applicability, 0-450 meters of buildings, flat support is one-time stamping of the U-shaped groove, brace support is 20 solid steel which toughness stronger.
Rack own production which can be centered or biased install.
6. Paint: automatic electrophoresis paint line
Specification
| Classification | Model | Rated Load(kg) | Speed(m/min) | Motor Power(KW) |
|
Normal Construction Elevator Single Cage Double Cage |
SC200 | 2000 | 33 | 2×11 |
| SC100 | 1000 | 33 | 2×11 | |
| SC100/100 | 2×1000 | 33 | (2×2)×11 | |
| SC200/200 | 2×2000 | 33 | (2×3)×11 | |
|
Frequency Construction Elevator Single Cage
Double Cage
|
SC200 | 2000 | 0-40 or 0-60 | 2×11 |
| SC100 | 1000 | 0-40 or 0-60 | 2×11 | |
| SC100/100 | 2×1000 | 0-40 or 0-60 | (2×2)×11 | |
| SC200/200 | 2×2000 | 0-40 or 0-60 | (2×3)×11 |
Humanistic Design
1. Newly designed height of the cage (2.46m), which can save freight.
2. Top of the cage is made of a complete high-grade steel, so the waterproof performance is greatly improved.
3. Body of cage is made of mesh steel plate, appearance of which with special spray technology which makes cage more beautiful, can completely against rust and prolong its usage life-span.
4. Door frame is made by light weight steel shape which can make cage more stable.
5. Special embedded counterweight design. More safe and stable in.
6. Improved door handle makes the operation more easily.
