Product Details:
Payment & Shipping Terms:
|
| Application: | Buildings And Projects | Type: | Fixed With Tower Head |
|---|---|---|---|
| Max. Load: | 8 T | Jib Length: | 55 M |
| Tip. Load: | 1.5 T | Mast section: | 1.835*1.835*2.5m (Block Type) |
| Main Chord: | 135*12mm (square Tube) | Color: | Yellow Or Others |

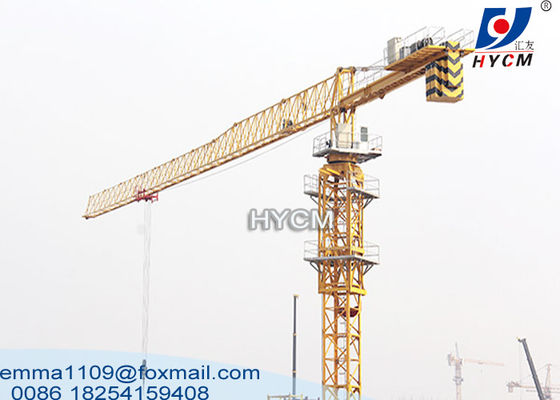

8tons PT5515 Power Cable Tower Crane Quotes Lift Building Materials
Performance parameters and technical indexes reach both domestic and international advanced level.
a. Max. jib length: 55 m
b. Max. lifting capacity: 8 t
c. Max. hoisting capacity at jib tip: 1.5 t
d. Max. lifting moment: 800 KN.M
e. Max. free-standing height: 45 m
f. Max. working height of anchored crane: 150 m
g. Types of tower crane: stationary crane and outside climbing type. Mobile and inner climbing type are available
Specification
| Type | Topless or Flat top no head |
| Max. Lifting Load (t) | 8 |
| Tip Load (t) | 1.5 |
| Max. Lifting Height with anchorage (m) | 150 |
| Free standing height (m) | 45 |
| Rope length (m) | 400 |
| Span (m) | 55 |
| Working range (m) | 3 to 55 |
| Slewing speed (r/min) | 0.6 |
| Trolley peed (m/min) | 40/20 |
| Jacking-up speed (m/min) | 0.4 |
| Counter jib length (m) | 15.4 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (KW) | 46.2 |
| Electric switch box | Schneider |
| Hoisting speed (m/min) | (a=2)80/40/8.5; (a=4)40/20/4.25 |
| Mast section (m) | 1.833*1.833*2.5m (135*12mm square steel) |
Our advantage
1. 15 years of experience in supplying new external climbing tower crane with HYCM Brand.
2. Export to more than 20 countries with CE/ISO/GOST/CU-TR Certificates.
3. Stationary/Traveling and internal climbing type tower crane are available
4. Impeller blasting/rust protection paint
5. Advanced painting process
6. Strict and experience welding line
7. New designed mast, can be used to Internal and external climbing tower crane
8. Well known brand mechanism system, Schneider Electronic control system, Jjiangte and Jiuhe motor
9. Engineers available to service machinery overseas.
10. For warranty, it is 12 months from the B/L date. What's more, some free easy worn spare parts are provided together with the crane.
Components
Mast: the main supporting tower of the crane. It is made of steel trussed sections that are connected together during installation.
Slewing unit: the slewing unit sits at the top of the mast. This is the engine that enables the crane to rotate.
Operating cabin: the operating cabin sits just above the slewing unit. It contains the operating controls.
Jib: the jib, or operating arm, extends horizontally from the crane. A "luffing" jib is able to move up and down; a fixed jib has a rolling trolley that runs along the underside to move goods horizontally.
Hook: the hook (or hooks) is used to connect the material to the crane. It hangs at the end of thick steel cables that run along the jib to the motor.
Weights: Large concrete counterweights are mounted toward the rear of the mast, to compensate for the weight of the goods lifted.
Photos
