Top Flat Tower Crane QTP5010 50M Boom Long 5TONS Specifications

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QTZ50(PT5010) Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $41700-48200 per set

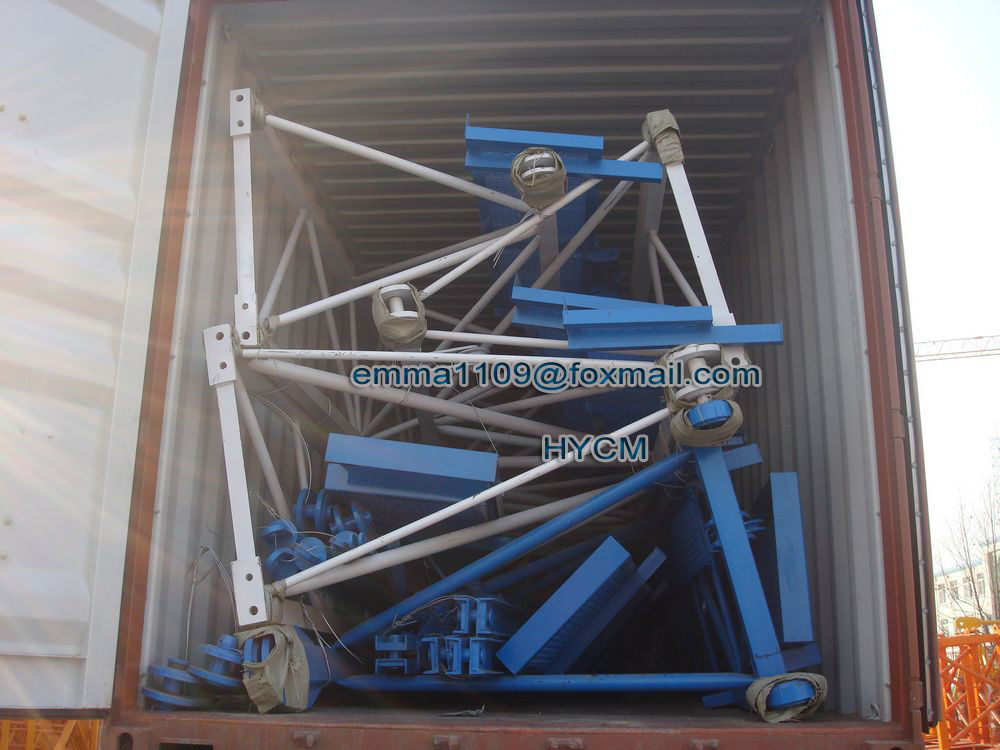

Packaging Details: Naked packing, 3*40’HQ+1*20'GP containers.

Delivery Time: 15 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 30 sets per month

Get Best Price
Product Details
Highlight:
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
5 T
Jib Length:
50 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5 M (block Type)
Main Chord:
135*10mm (square Tube)
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
5 T
Jib Length:
50 M
Tip. Load:
1.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*2.5 M (block Type)
Main Chord:
135*10mm (square Tube)
Product Description

Top Flat Tower Crane QTP5010 50M Boom Long 5TONS Specifications


 Performance parameters
• Max. jib length: 50m;
• Max. lifting capacity: 5t;
• Max. hoisting capacity at jib tip:1t;
• Rated lifting moment: 500 Kn.m;
• Max. freestanding height: 30m; Max. working height of anchored crane: 120m;

Specification

Rated lifting moment (kN.m) 500
Lifting height (m) Rope fall Free-standing stationary crane Anchored crane
α=2 30 120
α=4 30 120
Working radius (m) Max. working radius 50
Min. working radius 3
Max. lifting capacity (t) 5
Hoisting mechanism Rope fall α=2 α=4
Speed (m/min) 65/32/7.0 32/16/3.5
Lifting weight (t) 1 2.5 2.5 5
Power (kW) 15/15/4
Tolleying mechanism Speed (m/min) 0.7/0.35
Power (kW) 3.7
Slewing mechanism Speed (r/min) 0.4
Power (kW) 4


Technical features
a. Speeds of trolleying and slewing mechanisms are high, good speed adjusting performance, excellent stability.
b. Anti-broken wire rope device and anti-broken shaft device
c. Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
d. Advanced electronic appliances, such as Schineider.
e.. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.

Safety devices:
1): Hoist height limit
2): Over speed limit
3): Over load limit
4): Lifting moment limit
5): Slewing angle limit

6): Emergency stop button

7): Obstruction light (tip of jib, tower head)

8): Wind lock device.



Our Service

------Quality Assurance

Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.

------Excellent Package

We provide standard, strong, protective package for our products to prevent it from outer damage.

------Warranty Assurance

For our tower crane, we provide 1 year warranty period and quick replace service.

------The Fastest Reply

Detailed information,specific model and price of products will be provided quickly after receiving inquiry.



Why choose us

1. A professional tower crane supplier in China with 15 years experience

2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications

3. Hydraulic self-climbing mechanism

4. Variable-frequency slewing mechanism

5. Varialbe-speed frequency PLC control System

6. Operation data display screen and Safety monitoring system (Black Box)

7. Various safety devices
