Highlight:
QTZ63 tower crane
, construction tower crane specifications
, topkit tower crane with warranty
Condition: |
100% New |
Application: |
Buildings And Projects |
Type: |
Fixed Without Tower Head |
Max. Load: |
4 T |
Jib Length: |
40 M |
Tip. Load: |
1.0 T |
Power supply: |
380V/50Hz Or According To Client's Requirements |
Mast section: |
1.2*1.2*3m (blcok Type) S24 |
Electric Box: |
Schneider |
Power Supply: |
380V/50Hz, 415V/50Hz, 220V/50Hz Or According To Clients Need |

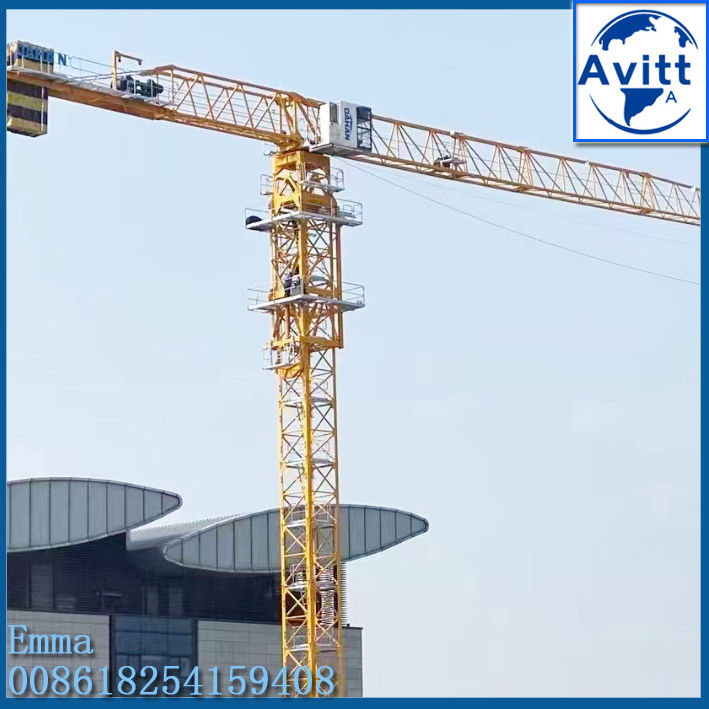

Hot Sell qtz40 Specifications Tower Crane Construction Cranes Tower in Africa S24 Mast
Main Technical Parameters
1.QTZ40(4010) Topless Tower Crane
2. Type: fixed and external climbing
3. jib length:40m
4. tip load:1.0t
5. max.laod: 4t
6.freestanding height:27m
Specification
| 产品型号 Model |
QTZ40(4010-4T) (PT4010) |
| 臂长 Jib length |
40M |
| 最大额定起重量 Max. load |
4T@4rate 2T@2rate |
| 臂尖额定起重量 Tip load |
1.0T |
| 高度 Height |
27M |
| 基础节 Base mast |
1pc 1.2*1.2*6M |
| 标准节standard mast |
6pcs (1.2*1.2*3M) S24 |
| 附墙 anchorage/wall-tie |
2 sets (distance to buildings less than 5m) |
|
起升机构 Hoisting mechanism
|
15IQ13-15KW (三速 three speed) |
| 变幅机构 Trolleying mechanism |
2BDX40-1.52.4KW(二速 two speed) |
| 回转机构Slewing mechanism |
RCV-5.5KW |
| 液压系统 hydraulic system |
25MPa |
| 司机室 cab |
1.2m width standard one(with air conditioning) |
| 电控系统 electric box |
Normal control with Schneider contactors |
| 塔身颜色 color |
Potain yellow |
| 其他配置 others |
The pins, platform, and railing are all hot-dip galvanized |
| 安全装置 safety device |
Weight limiter, torque limiter, high limiter,trolley limiter, slew limiter |
| 起升钢丝绳 Hoisting wire rope |
35W*7-Φ11-1770 |
| 主电缆 Power cable |
37m (YC3*16+2*10) |
Note: specification are updated without notice
Main features
This tower crane, has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.
It is original in design, reliable in operation and satisfactory in shape.
Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency.
They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
Applications
It’s used in construction building site, such as Multi commercial housing, High rise building, Skyscraper, and Workshop Material handling etc.
Why choose us
1. A professional tower crane supplier in China with 25 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
Pictures
