|Application:||Buildings And Projects||Type:||Fixed With Tower Head|
|Max. Load:||6t||Jib Length:||25m|
|Tip. Load:||2.0t||Power supply:||380V/50Hz Or According To Client's Requirements|
|Mast section:||1.6*1.6*3m (split Type)||Main Chord:||180*18mm (angle Steel)|

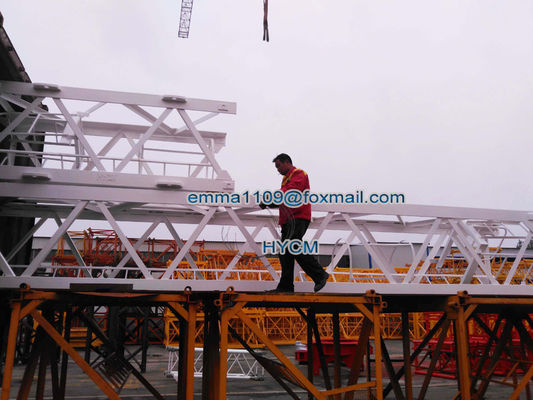

D63-2520 25M Jib Boom Luffing Tower Crane 1.2*3m Mast Section
• Max. jib length: 25m;
• Max. lifting capacity 6t;
• Max. hoisting capacity at jib tip:2.0t;
• Rated lifting moment: 630 Kn.m;
• Max. freestanding height: 35m; Max. working height of anchored crane: 180m;
|Model||QTD2520 Luffing Tower Crane|
|Working Radius (m)||25|
|Max. Load Capacity (T)||6|
|Tip Load (T)||2.0|
|Free standing height (m)||35|
|Max. Height with anchorages (m)||160|
|Mast Section dimension (m)||1.2×1.2×3, angle steel 160×16mm|
|Hoisting Mechanism||Speed (m/min)||80/40/8.5 40/20/4.25|
|Motor power (kw)||24/24/5.4|
|Slewing Mechanism||Speed (r/min)||0.6|
|Motor power (kw)||2*3.7|
|Trolleying Mechanism||Speed (m/min)||10|
|Motor power (kw)||30|
|Jacking-up System||Speed (m/min)||0.4|
|Motor power (kw)||7.5|
|Total Power (kw)||34|
|Power Supply||380V/50Hz or according to clients needs|
Our Skilled Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field. Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.
1. Suitable for all kinds of construction project and can work under all kinds of work condition.
2. It has high working speed, good speed-adjusting performance, steady operation and high efficiency.
3. The crane has complete set of safety devices, which can guarantee the safe and high efficient operation of the equipment.
4. Three-speed motor and mono-speed ratio decelerator are applied in the lifting structure, which enables heavy load low speed and light load high speed.
5. Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting hydraulic coupler, which can realize high load capacity, steady starting and reliable operation.
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
