QD Series 15 Meters Jib Derrick Crane 1.5t Tip Load 3t Max.Load Capacity

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QD30(1515) Derrick Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $29500-33900 per set

Packaging Details: Naked packing, 1*40’HQ containers.

Delivery Time: 15 days after receiving the deposit or origin LC

Payment Terms: Western Union, L/C, T/T

Supply Ability: 40 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Condition:	100% New	Application:	Buildings And Projects
Type:	Fixed With Tower Head	Max. Load:	3 T
Jib Length:	15 M	Tip. Load:	1.5 T
Power supply:	380V/50Hz Or According To Client's Requirements	After Sale Service:	Engineers Available To Service Overseas
Color:	Yellow Or According To Clients Need

Condition:	100% New
Application:	Buildings And Projects
Type:	Fixed With Tower Head
Max. Load:	3 T
Jib Length:	15 M
Tip. Load:	1.5 T
Power supply:	380V/50Hz Or According To Client's Requirements
After Sale Service:	Engineers Available To Service Overseas
Color:	Yellow Or According To Clients Need

Product Description

QD Series 15 Meters Jib Derrick Crane 1.5t Tip Load 3t Max.Load Capacity

Introduction

1. Derrick Crane is a professional machine removal existed inner climbing tower cranes.

2. It is usually mounted on the roof of a building and without mast section body (that’s the different from fulling tower cranes).

3. Its base is fixed on the building roof with he slewing part.

4. HYCM brand derrick crane for sale is reasonable designed and easily moved and disassembled.

Specification

Model		QD30 (1515) Derrick Crane
Working Radius (m)		15
Max. Load Capacity (T)		3
Tip Load (T)		1.5
Height (m)		150
Hoisting Mechanism	Speed (m/min)	a2=65/32/7
	Motor power (kw)	18/18/5
Slewing Mechanism	Speed (r/min)	0-0.6
	Motor power (kw)	3.7
Trolleying Mechanism	Speed (m/min)	0-10
	Motor power (kw)	18
Total Power (kw)		31.7
Power Supply		380V/50Hz, 220V/60Hz or according to clients needs

Features

1. Main column, Jib & side supports manufactured from electrically welded steel, sections and others

2. Main column offered with drive system which provides easy rotation on base plate with pin

3. Upper part of column is set equipped with a pin acting as hinge for the fixing bracket of tie beams and for additional support to jib

4. For higher capacity cranes steel pulley rotating on roller bearings with ground steel pins

5. The drive system consists of tope pulleys winch mechanism, gear train, wire rope drum, hand brake & clutch system and electric operated facility (optional) comprising of electric magnetic/thruster brake, control panel for hoisting and swiveling motion

6. Block with steel pulley

7. Single or double hook (with anchor) on thrust bearings

8. All gears are fabricated using EN 24 steel with teeth cut on hobbling machine Technical Specification

Photos

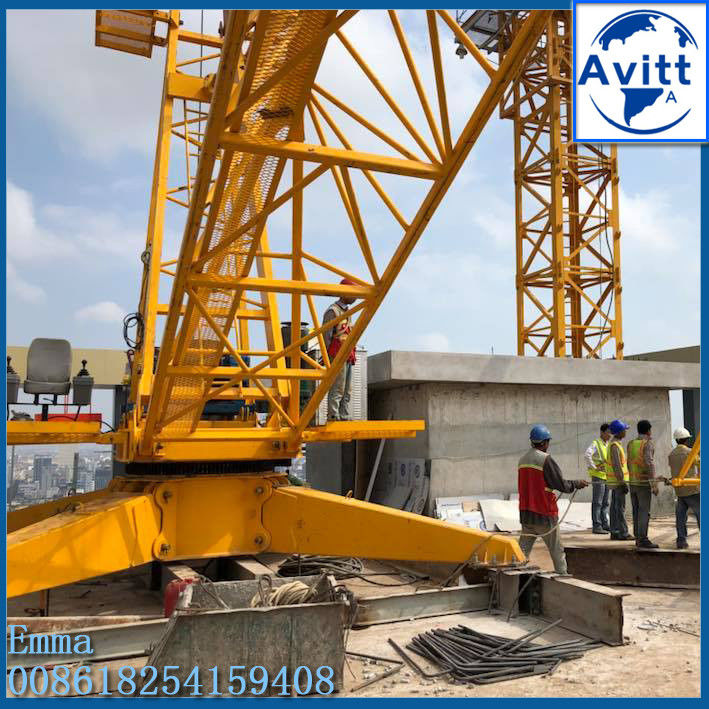

QD Series 15 Meters Jib Derrick Crane 1.5t Tip Load 3t Max.Load Capacity 0
