Product Details:
Payment & Shipping Terms:
|
| Application: | Buildings And Projects | Type: | Fixed With Tower Head |
|---|---|---|---|
| Max. Load: | 8 T | Jib Length: | 45 M |
| Tip. Load: | 2.2 T | Power supply: | 380V/50Hz Or According To Client's Requirements |
| Mast section: | 1.6*1.6*3 M (split Type) | Main Chord: | 180*18 Mm (angle Steel) |

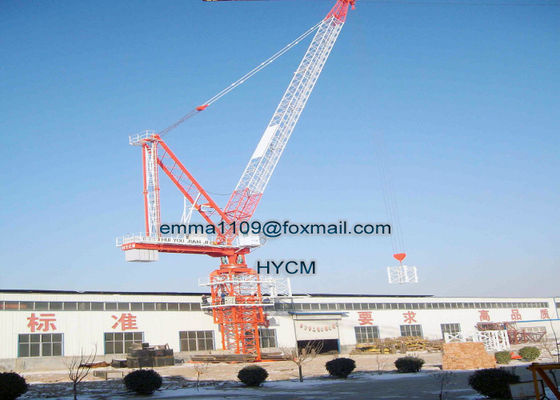

8 Tons D120 45M Boom Luffing Tower Cranes Construction Building Cranes
Performance parameters of D4522
• Max. jib length: 45m;
• Max. lifting capacity 8t;
• Max. hoisting capacity at jib tip:2.2t;
• Rated lifting moment: 1200 Kn.m;
• Max. freestanding height: 27m; Max. working height of anchored crane: 160m;
Specification
| Model | QTD120 (4522) Luffing Tower Crane | |
| Working Radius (m) | 45 | |
| Max. Load Capacity (T) | 8 | |
| Tip Load (T) | 2.2 | |
| Free standing height (m) | 37 | |
| Max. Height with anchorages (m) | 160 | |
| Mast Section dimension (m) | 1.6×1.6×3, angle steel 180×18mm | |
| Hoisting Mechanism | Speed (m/min) | 80/40/8.5 40/20/4.25 |
| Motor power (kw) | 24/24/5.4 | |
| Slewing Mechanism | Speed (r/min) | 0.6 |
| Motor power (kw) | 2*3.7 | |
| Trolleying Mechanism | Speed (m/min) | 10 |
| Motor power (kw) | 30 | |
| Jacking-up System | Speed (m/min) | 0.4 |
| Motor power (kw) | 7.5 | |
| Total Power (kw) | 34 | |
| Power Supply | 380V/50Hz or according to clients needs | |
Advantages of QTD120 Luffing Jib Tower Crane
Use in extremely restricted areas
Small slewing radii
Modular design
Pre-installed assemblies
Extreme hook heights
Horizontal load movement
Climbing inside buildings
Safety monitoring during climbing
Commercial Terms
Price: Negotiable
Delivery time: 30 days after receiving 30% advanced payment
Trade terms: FOB (qingdao) Or CFR, CIF according to Clients needs
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Packing: Standard Exporting Packing
Warranty: At least 12 months
Photos
