QD60 Derrick Crane 24m Boom Length 2.0t End Load Specification

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QD60(2420) Derrick Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $29500-34900 per set

Packaging Details: Naked packing, 1*40’HQ containers for derrick crane

Delivery Time: 15 days after receiving the deposit or origin LC

Payment Terms: Western Union, L/C, T/T

Supply Ability: 40 sets per month

Get Best Price
Product Details
Highlight:
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 T
Jib Length:
24 M
Tip. Load:
2.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
After Sale Service:
Engineers Available To Service Overseas
Color:
Yellow Or According To Clients Need
Condition:
100% New
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 T
Jib Length:
24 M
Tip. Load:
2.0 T
Power supply:
380V/50Hz Or According To Client's Requirements
After Sale Service:
Engineers Available To Service Overseas
Color:
Yellow Or According To Clients Need
Product Description

 QD60 Derrick Crane 24m Boom Length 2.0t End Load Specification



Short Description of QD60 Derrick Crane

Tower cranes are used extensively in construction and other industry to hoist and move materials. a smaller crane (or derrick) will often be lifted to the roof of the completed tower to dismantle the tower crane afterwards.



Specification of QD60 Derrick Crane



Model QD60 (2420) Derrick Crane
Working Radius (m) 24
Max. Load Capacity (T) 6
Tip Load (T) 2.0
Height (m) 150
Hoisting Mechanism Speed (m/min) 80/40
  Motor power (kw) 24/24/5.4
Slewing Mechanism Speed (r/min) 0-0.6
  Motor power (kw) 2*3.7
Trolleying Mechanism Speed (m/min) 0-15
  Motor power (kw) 26
Total Power (kw) 57.4
Power Supply 380V/50Hz, 220V/60Hz or according to clients needs



Features of QD60 Derrick Crane

1. Main column, Jib & side supports manufactured from electrically welded steel, sections and others

2. Main column offered with drive system which provides easy rotation on base plate with pin

3. Upper part of column is set equipped with a pin acting as hinge for the fixing bracket of tie beams and for additional support to jib

4. For higher capacity cranes steel pulley rotating on roller bearings with ground steel pins

5. The drive system consists of tope pulleys winch mechanism, gear train, wire rope drum, hand brake & clutch system and electric operated facility (optional) comprising of electric magnetic/thruster brake, control panel for hoisting and swiveling motion

6. Block with steel pulley

7. Single or double hook (with anchor) on thrust bearings

8. All gears are fabricated using EN 24 steel with teeth cut on hobbling machine Technical Specification

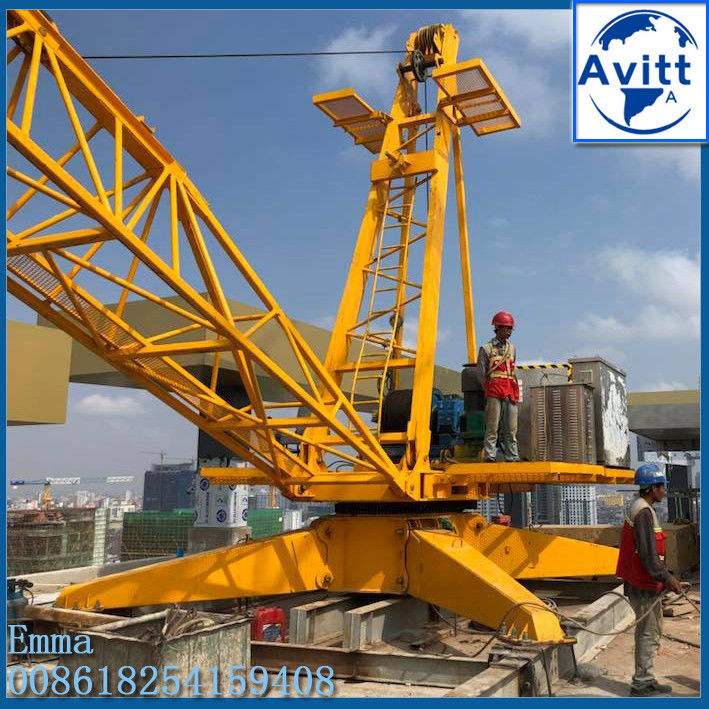

Photos of of QD60 Derrick Crane

QD60 Derrick Crane 24m Boom Length 2.0t End Load Specification 0QD60 Derrick Crane 24m Boom Length 2.0t End Load Specification 1

Competitive Advantage:

  • Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
  • Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.
  • Anti-broken wire rope device and anti-broken shaft device
  • Advanced electronic appliances.





Model Max.load Jib length Tip load Height
WD30(1515) 3t 15m 1.5t 120m
WD40(3015) 4t 30m 1.5t 120m
WD60(2420) 6t 24m 2.0t 120m
WD60(1830) 6t 18m 3.0t 120m
WD80(1840) 8t 18m 4.0t 150m
WD80(2435) 8t 24m 3.5t 150m
WD80(3023) 8t 30m 2.3t 150m
WD100(1850) 10t 18m 5.0t 150m
WD100(2420) 10t 24m 2.0t 150m
WD100(3023) 10t 30m 2.3t 150m
