Payment & Shipping Terms:
|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Fixed With Tower Head||Max. Load:||10t|
|Jib Length:||18m||Tip. Load:||4.0t|
|Power supply:||380V/50Hz Or According To Client's Requirements||Color:||Yellow Or According To Clients Need|
QD100 Construction Derrick Crane 10 Tons Capacity With Inverter / VFD Control
Feature of QD100 Derrick Crane
(1) Special design of separate-settled. Low center weight of gravity in slewing, large lifting capacity and reasonable mechanism design.
(2) Big luffing range. The slewing radius can reach 24 m. More efficiency will come true by changing luffing range under rated load.
(3) Three mechanisms-lifting, luffing and slewing, with satisfied performance in shifting and high efficiency, are operated easily.
(4) With kinds of safety facilities, as limiter for lifting moment, slewing limiter and luffing limiter. Once over load happen, the facilities will turn down power automatically right away.
Also, an electronic transducer for load is fixed to cut down power when overloading appears.
(5) Installation and disassembly is convenient. The product can be transferred to other site in short time and maintenance is very easy and convenient. All spare parts satisfy relative standards.
(6) Electric control box is equipped to the crane which is operated easily and safely.
Specification of QD80 Derrick Crane
|Model||QD100 (1840) Derrick Crane|
|Working Radius (m)||18|
|Max. Load Capacity (T)||10|
|Tip Load (T)||4.0|
|Hoisting Mechanism||Speed (m/min)||0-48 0-96|
|Motor power (kw)||45|
|Slewing Mechanism||Speed (r/min)||0-0.6|
|Motor power (kw)||2*5.5|
|Trolleying Mechanism||Speed (m/min)||0-15|
|Motor power (kw)||26|
|Total Power (kw)||82|
|Power Supply||380V/50Hz, 220V/60Hz or according to clients needs|
Control method of QD100 Derrick Crane
(1) Pendent line control
(2) Remote control
(3) Cabin control
(4) Choose any two together
Painting of QD100 Derrick Crane
(1) Process: Sandblast, Primer, finishing paint
(2) Color: Yellow, Red, Blue etc. (according to your demand).
(3) Average thickness: Above 120 microns. (According to your demand).
Application of QD100 Derrick Crane
1. Shipping platforms
2. High-rise buildings
3. Construction sites

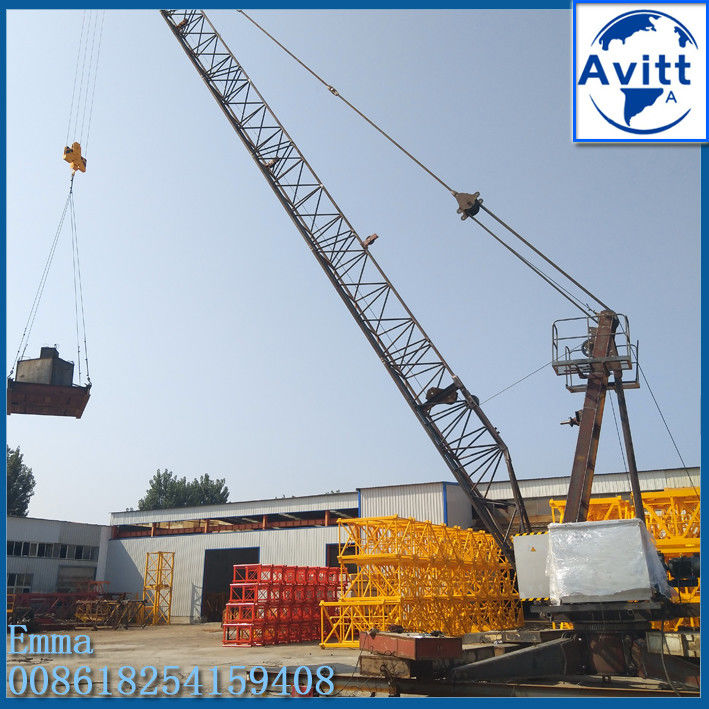

Photos of QD80 Derrick Crane
