OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction

Name: OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction
Brand: Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane
SKU: small cranes
Price: 6,980.00 USD
Availability: InStock

Product Details

Place of Origin: China Mainlad

Brand Name: Avitt or Hugong others

Certification: CE, ISO

Model Number: small cranes

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $500-13460 per set

Packaging Details: Wonden box for LCL containers

Delivery Time: 10-15 days after receiving the deposit or origin LC

Payment Terms: Western Union, L/C, T/T

Supply Ability: 100 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                OEM wire rope electric hoist, electric hoist for cranes construction, 1ton to 30ton wire rope hoist


Condition:	100% New	Application:	Cranes And Construcion
Type:	Fixed Or Mobile	Max. Load:	500kg-35t
Power supply:	220V Or 380V/50Hz Or According To Client's Requirements	Color:	Yellow, Red Or According To Clients Needs

Condition:	100% New
Application:	Cranes And Construcion
Type:	Fixed Or Mobile
Max. Load:	500kg-35t
Power supply:	220V Or 380V/50Hz Or According To Client's Requirements
Color:	Yellow, Red Or According To Clients Needs

Product Description

OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction

Specification

Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.

3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.

4.Protection grade: IP54, work grade: M3

5.Over load limit is available. Hook is widen and thicken

6.Power-Off protection, Emergency stop system.

Feature of China 220v 380v 3 phase electric motor underground mining winch

1. special drive composition method.

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.

3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.

4.Protection grade: IP54, work grade: M3,M4

5.Over load limit is available. Hook is widen and thicken

6. Power-Off protection, Emergency stop system.

7.Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel

Advantages of China 220v 380v 3 phase electric motor underground mining winch

1. Compact size
The axial dimension of hoist is compact ,it is easy to close the wall and lifting more height in a certain height.
The size of rail bottom base to hook is smallest compare with CD1 hoist , it makes the possible to lower the height of construction.

2. light self-weight ,light wheel pressure. It reduce the pressure of girder ,raise the Safety coefficient of girder.

Product parameters of China 220v 380v 3 phase electric motor underground mining winch
Model	0.25TON	0.5TON	1TON	2TON	3TON	5TON	10TON
Capacity ton	0.25	0.5	1	2	3	5	10
Standard lift m	3-9	6-12	6-30	6-30	6-30	6-30	6-30
Lifting Height m/min	88/0.8	88/0.8	88/0.8	88/0.8	88/0.8	88/0.8	77/0.7
Running Speed m/min	20/30
Wire Rope type	6*19-3.6	6*37-4.8-180	6*37-7.4-180	6*37-11-155	6*37-13-170	6*37-15-200	6*37-15-200
I beam track type	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Loop track minimum Radius m	0.8	1.5	1.5-4	2-4	2-4	2.5-5	3.5-9
Voltage V	380	380	380	380	380	380	380
Frequency HZ	50	50	50	50	50	50	50
Phase	3	3	3	3	3	3	3

Photos

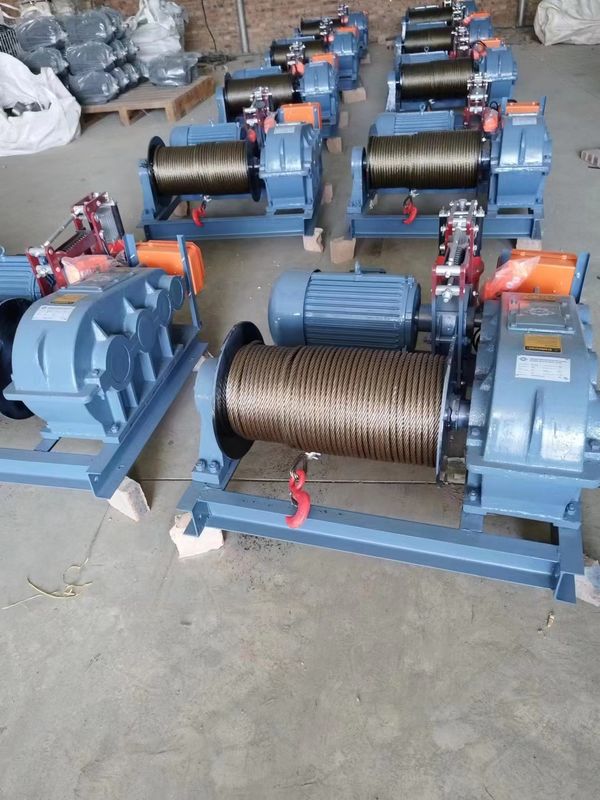

OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction 0

More products available: Construction Machinery

Tower Cranes

---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.

---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.

---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.

---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.

OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction 1

SC Construction Man and Material Elevator

------ Rack and pinion elevator, special for the lifting work of construction Man and Material, 1000kg to 4000kg capacity, Passenger and Material, up to 200m. .

OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction 2

SS Building Material Lift / Hoist

------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.

OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction 3

SJY Scissor Lift

OEM Wire Rope Electric Hoist 1tons to 30tons for Cranes Construction 4

Gantry Crane
