6tons qtz100 Flat Top Types Tower Crane Building Construction Tools and Equipment

Product Details

Place of Origin: China

Brand Name: HYCM TOWER CRANE

Certification: CE, ISO, GOST, CU-TR

Model Number: PT6013 Topless Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $73500-99000 per set

Packaging Details: Naked packing, 5*40’HC containers per set Topless Tower Crane

Delivery Time: 20 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 30 sets per month

Get Best Price
Product Details
Highlight:
Application:
Buildings And Projects
Type:
Fixed Without Tower Head
Max. Load:
6 T
Jib Length:
60 M
Tip. Load:
1.3 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*3m (split Type)
Main Chord:
180*18mm
Application:
Buildings And Projects
Type:
Fixed Without Tower Head
Max. Load:
6 T
Jib Length:
60 M
Tip. Load:
1.3 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*3m (split Type)
Main Chord:
180*18mm
Product Description

6tons qtz100 Flat Top Types Tower Crane Building Construction Tools and Equipment



Short Parameter

 1. PT6013 Flat Top Tower Crane

2. Type: fixed and external climbing

3. jib length: 60m

4. tip load: 1.3t

5. max.laod: 6t

6.freestanding height: 50m


Description
1. This tower cranes are a modern form of balance crane that fixed to the ground on a concrete slab, tower cranes often give the best combination of height and lifting capacity and are used in the construction of tall buildings.
2. The base is then attached to the mast which gives the crane its height. Further the mast is attached to the slewing unit (gear and motor) that allows the crane to rotate.
On top of the slewing unit there are three main parts which are: the long horizontal jib (working arm), shorter counter-jib.

Specification

Model PT6013 Topless Tower Crane
Working Radius (m) 60
Max. Load Capacity (T) 6
Tip Load (T) 1.3
Free standing height (m) 50
Max. Height with anchorages (m) 150
Mast Section dimension (m) 1.6*1.6*3,  180×18mm

Hoisting
Mechanism

Speed (m/min) (a=2)0-80; (a=4)0-40
Motor power (kw) 24/24/5.4

Slewing
Mechanism

Speed (r/min) 0-0.6
Motor power (kw) 2*3.7

Trolleying
Mechanism

Speed (m/min) 0-40
Motor power (kw) 3.3/2.2

Jacking-up
System

Speed (m/min) 0.4
Motor power (kw) 5.5
Total Power (kw) 34.8


Feature
1. For even higher performances, cranes offer new possibilities for operation: saving time and space.
2. Has reduced dimensions in space due to the slewing part without cathead or jib tie bars
3. Smaller overall height, erection operations at a reduced height
4. Easier overflying of obstacles on site (cranes, electricity lines, cables,..)
5. Jib configuration can be changed in the air during evolution of sites

Why choose us
1. A professional tower crane supplier in China with 20 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

Photos

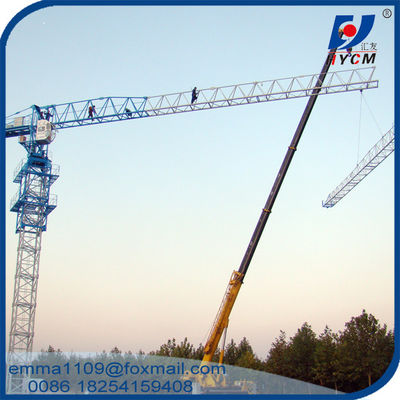

6tons qtz100 Flat Top Types Tower Crane Building Construction Tools and Equipment 0
