| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Industrial Aerial Platorm | Rated Load: | 630kg |
| Steel Wire Rope: | 8.3mm | Rated Speed: | 9-11 M/min |
| Power supply: | 440V 60Hz, 380V 50Hz Or Others | Motor Power: | 2*1.5 Kw |
| Platform Material: | Steel, Hot Galvanized Or Aluminum | Cable Length: | 100m |
zlp 630 Platform With Aluminium Alloy Steel Counter Weight 150 mtr Height
Description

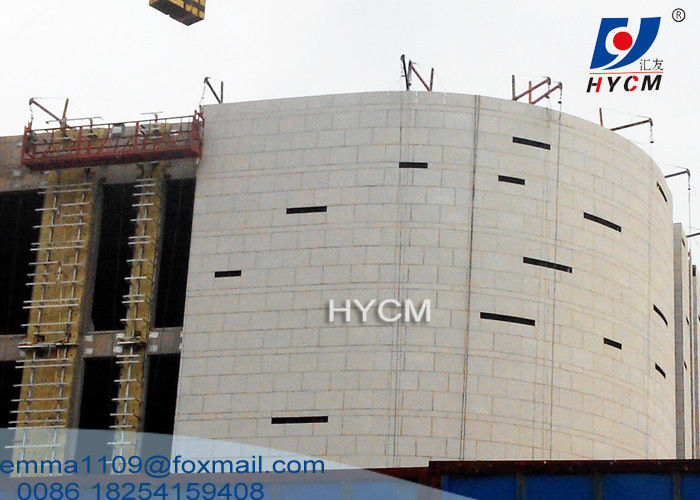

1. It is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
2. It is ideal for building facade construction, decoration, cleaning and maintenance.
3. It is also widely used in elevator installing, ship building and repairing, or in other areas such as big-size tank, bridge, embankment and chimney.
4. ZLP series versatile knock-down platform provides workers safer, easier and more efficient platform access.
5. Absolutely guarantee life safety during Aerial working.
6. Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist
7. Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop
Specification
| Model No. | ZLP630 | |
| Rated load(kg) | 630 | |
| Lifting speed(m/min) | 9～11 | |
| Hoister model | LTD63 | |
| Motor power(kw) | 2×1.5 | |
| Brake torque(N.m) | 15.2 | |
| Rated stretch of front beam(mm) | 1100-1700 | |
| Suspending Platform | No. of platform rack | Single rack |
| No. of platform | 3 | |
| L×W×H(mm) | (1.5+2+2.5)×690×1180 | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) --optional | 25×40pcs | |
| Diameter of steel rope(mm) | 8.3 | |
| Voltage(v) 3PHASES | 220V/380V/415V (customized) | |
| Ambient temperature | -20℃~+40℃ | |
| Ambient relative humidity | ≤ 90%(25℃) | |
The main Part:
1. Suspension Mechanism and Counterweight
The Height of the platform can be adjusted within 1150-1750mm with arm which can be stretched out and drawn back, it can be widely used parapet and complicated building in different height, and we can also supply customized platform to meet different requirement from the customers
2. Working Platform
Different material for different requests: Steel, Hot galvanized and Aluminum.
Various platform length for clients to choose.
3. Hoist Motor
LTD6.3 “a” shape hoist
4. Electrical Control box
Installed with international and national famous brands electrical components, our electrical control system consists of many protection devices, Such safety devices as electrical leakage protection device, automatic limited switch, overheat protection, emergency brake, current coverload proof, which make operate more easier, safer and reliable.
5. Safety Lock
When the steel wire rope is broken, blocked, slip out of he hoist or the working platform inclines, the safety lock will lock the rope within 100mm, this safety device is high advanced in China now.
Why choose us
1. A professional supplier in China with 16 years experience
2. Exported to more than 20 countries with ISO9001 Certifications
3. Varialbe-speed control System
4. Operation data display screen and Safety monitoring system (Black Box)
5. Various safety devices
