Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | Application: | Buildings And Projects |
|---|---|---|---|
| Type: | Self Erection Mobile | Max. Load: | 2t |
| Jib Length: | 24m | Max. Height: | 20m |
| Power supply: | 380V/50Hz, 415V/50Hz, 220V/60Hz Or According To Clients Need | After Sale Service: | Engineers Available To Service Overseas |
| Color: | Yellow Or According To Clients Need |
2ton Self-Erecting Construction Tower Crane For 3 Layers Low Rise Building
Short Parameters:
1. YT2024 Self Erecing Tower Crane
2. Type: mobile and self-erection
3. jib length: 24m
4. max.laod: 2t
5.height: 20m
Description
The self erecting tower crane as a whole transport, quickly set up the vertical, horizontal transport machinery.
Mainly suitable for 1 to 5 layers civil construction buildings.
In addition, it can also be used all kinds of factories, garages, stations, terminals, etc. of cargo handling and stacking, and also serves as liquidity lifting transport machinery.
Specifications
| Specification | Unit | YT2024-20 | |
| Max. height | m | 20 | |
| Max.load | t | 2 | |
| Working range | m | 6-24 | |
|
Hoisting parameters |
Max.hoisting height | m | 20 |
| Max.working radius | m | 24 | |
| Max.hoisting weight | Kg | 2000 | |
| Hoisting speed | m/min | 13/26 | |
| Trolleying speed | m/min | 20/40 | |
| Slewing speed | r/min | 0.25/0.8 | |
| Erecting time | min | 10 | |
| Outrigger span | m | 4.2x4.2 | |
| Dead weight | Kg | 26000 | |
| Travel parameters | Max.towing speed | Km/h | 15 |
| Hydraulic system | Hydraulic system | Mpa | 28 |
| Power supply | Rated Power | Kw | 23.1 |
Advantages of self erecting tower crane:
1.Without foundation, saving construction cost, low requirement for site conditions.
2.Erecting and starting rapidly.
3.None working on the high level during erecting and dismounting.
4.Mast locked automatically, jib sections connected automatically in the air.
5.No require professional operator,operating simply, mastering easily.
6.Wireless remote operating,reducing working labor strength,having wide operating view.
Transporting wholly.
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system
7. Various safety devices

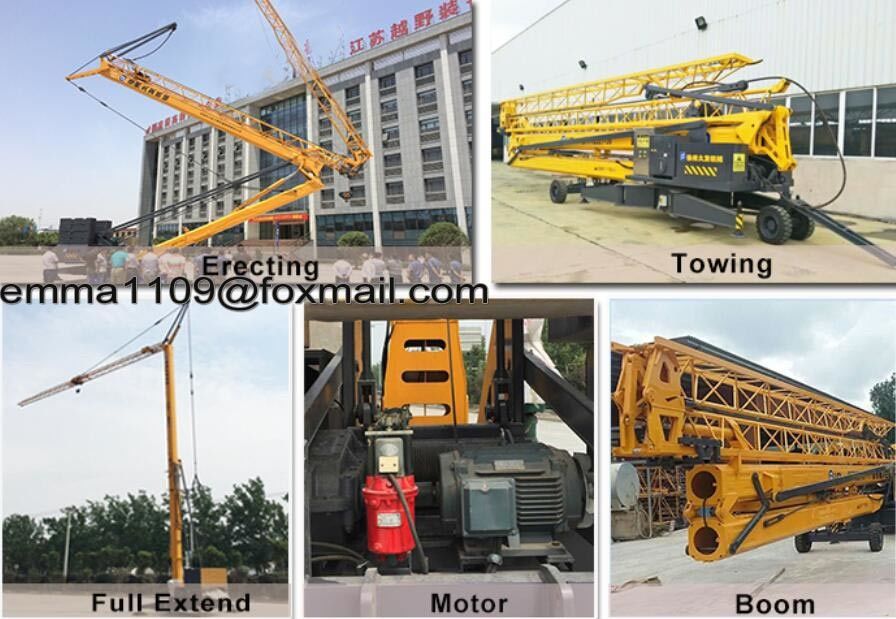

Pictures
