Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms

China Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms supplier
Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms supplier Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms supplier Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms supplier

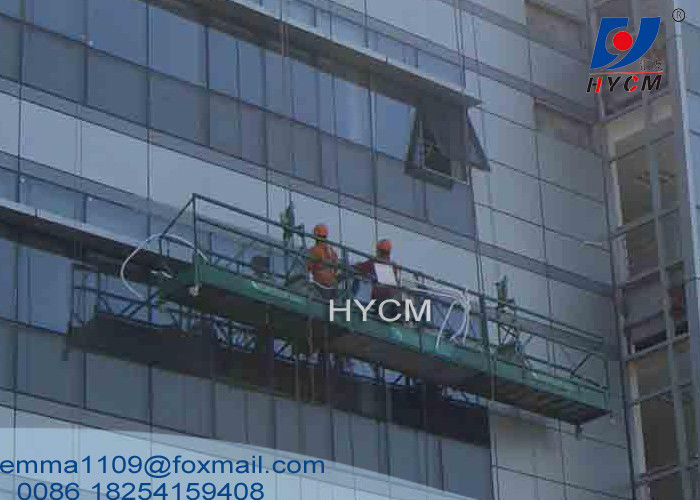

Large Image :  Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms

Product Details:

Place of Origin: China
Brand Name: HYCM AVITT or others
Certification: ISO,CE
Model Number: ZLP Construction Cradles Gondolas

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $900-3900 per set
Packaging Details: Pallet per set. LCL or 20’GP, 40'HC construction
Delivery Time: 7-10 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Condition: 100% New For: Window Cleaning, Building Maintance
Type: ZLP Load: 250kg-1000kg
Working Height: 30-100m Rated Speed: 8-10 Or 9-11 M/min
Power: 380v 50Hz Or Others Power: 1.5-2.2kw
Rope: 8.3-9.1mm Platform: 1-7.5m

Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms


Introduction:

1m, 2m, 3m, 1.5m, 2.5m to the length made.

Rated Load: 250-1000KG

Rated Lifting Speed: 8-10 or 9-11 m/min

Length of Platform: 1000-7500mm or others

Surface Proceeding: Steel materials (Galvanized, Spraying) or Aluminum

Lifting Height: 100m

Cable: 95m

Max Lifting Height: 200m

Steel Rope: 8.3-9.1mm

Hoist Power: 1.5-2.2KW*2

Voltage:380V, 50HZ,3 Phase(standard), 440V/60HZ, 220V/60Hz or others.

Safety Lock Permission Force of Impact: 30KN

Locking Cable Angle: 3°~ 8°

Suspension Mechanism Front Beam Overhang: 1.3 ~ 1.5m ±0.26

Package: Pallet or Naked by Containers


Specification

Model ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000
Rated load 250kg 500Kg 630Kg 800Kg 1000Kg
Lifting speed 12m/min 8-10m/min 8-10m/min 8-10m/min 8-10m/min
Platform Dimension L×W×H(mm) 500

5000(2+3m)

×690×1180

6000(1+2+3m)

×690×1180

7500(2.5m*3)

×690×1180

7500(2.5m*3)

×690×1180

Lifting Height 30 m 100 m 100 m 100 m 100m
Cable 30 m 100 m 100 m 100 m 100m
Steel rope Ф8.3mm Ф8.3mm Ф8.3mm Ф9.1mm Ф8.6mm
Hoist Power 1.5KW 1.5KW*2 1.5KW*2 1.8KW*2 2.2 KW*2
Safety lock Force 30KN 30KN 30KN 30KN 30KN

Suspension mechanism

Of Front beam overhang

/ 1.3~1.5m 1.3~1.5m 1.3~1.5m 1.3~1.5m
Self weight 48KG 770KG 810kg 870kg 900KG
Power Supply 220V/50Hz, 2P, 380V/50Hz, 3P or clients request



Applications

1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.



Features

1.Our suspended working platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

2.Suspension power Working Platform is a temporary, flexible high access equipment for maintenance and construction work. distinguished from permanent access equipment. It can be disassembled conveniently.

3. It compared with traditional scaffolding, can save labours and time to maintain the high buildings, such as industry workshop, water tower, bridge, TV tower, big chimney, cenotaph, dam,etc.
4. Besides, Suspension Working Platform can be used to lift specific weight.

5. Suspension Working Platform is a good helper for construciton and decoration of high buildings.

Glass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel PlatformsGlass Cleaning Gondola Metal Scaffold Equipment for Aerial Painting Personnel Platforms
