OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter

China OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter supplier
OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter supplier OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter supplier OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter supplier

Large Image :  OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter

Product Details:

Place of Origin: Shandong, China
Brand Name: HYCM or others
Certification: ISO,CE
Model Number: ZLP800 Building Aerial Platorm

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2800-3690 per set
Packaging Details: Pallet per set. LCL or 20’GP, 40'HQ construction
Delivery Time: 7-10 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Condition: 100% New For: 100m High Rise Window Clean
Type: Electric Scaffolding Load: 800kg
Suspension Mechanism: Hot Galvanized Material: Alloy
Power: 380v /50Hz Or Others With: Wall Roller And Platform Rollers Counter Weight
Steel Wire Rope Diameter: 8.6mm Platform: 7.5m

OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter


Introduction:

1m, 2m, 3m, 1.5m, 2.5m to the length made.

In any Combination Rated Load: 800KG

Rated Lifting Speed: 8-10m/min

Length of Platform: 7500mm or others

Surface Proceeding: Steel materials(Galvanized,Spraying) or Aluminum

Lifting Height: 100-200m

Cable: 100-200m

Max Lifting Height:100-200m

Steel Rope: 8.6mm or 9.1mm

Hoist Power: 1.8KW*2

Voltage:380V, 50HZ, Three-Phase(standard), 440V/60HZ, 220V/60Hz or others.

Safety Lock Permission Force of Impact: 30KN

Locking Cable Angle: 3°~ 8°

Suspension Mechanism Front Beam Overhang: 1.3 ~ 1.5m ±0.26

Support Adjustable Height: 1.44 ~ 2.14m ±0.26

Counter Weight: 1000KG or others

Package: Pallet or Naked by Containers



Applications

1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.


Specification

Model ZLP800 Suspended Working Platform
Rated load(kg) 800
Lifting speed(m/min) 8-10
Motor power(kw) 2×1.8 50HZ/60HZ
Brake torque(Km) 15.2
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1100-1700



Suspending Platform



Locking Steel
Nr. of platform rack Single rack
Nr. of platform 3
L×W×H(mm) (2500×3)×690×1180
Weight(kg) 217
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×40pcs
Diameter of steel rope(mm) 8.6
Voltage(v) 3PHASES 220V/380V/415V (customized)



Features

1.Our suspended working platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

2.Suspension power Working Platform is a temporary, flexible high access equipment for maintenance and construction work. distinguished from permanent access equipment. It can be disassembled conveniently.

3. It compared with traditional scaffolding, can save labours and time to maintain the high buildings, such as industry workshop, water tower, bridge, TV tower, big chimney, cenotaph, dam,etc.
4. Besides, Suspension Working Platform can be used to lift specific weight.

5. Suspension Working Platform is a good helper for construciton and decoration of high buildings.

6. ZLP800 suspended platform uses LTD80 hoisting motor. It has electromagnetic brake motor, centrifugal speed limiting device, two steep speed reducer and “a” type rope winding system.

7. Hoisting motor can wind rope automatically. Operator only need to insert rope into the motor.

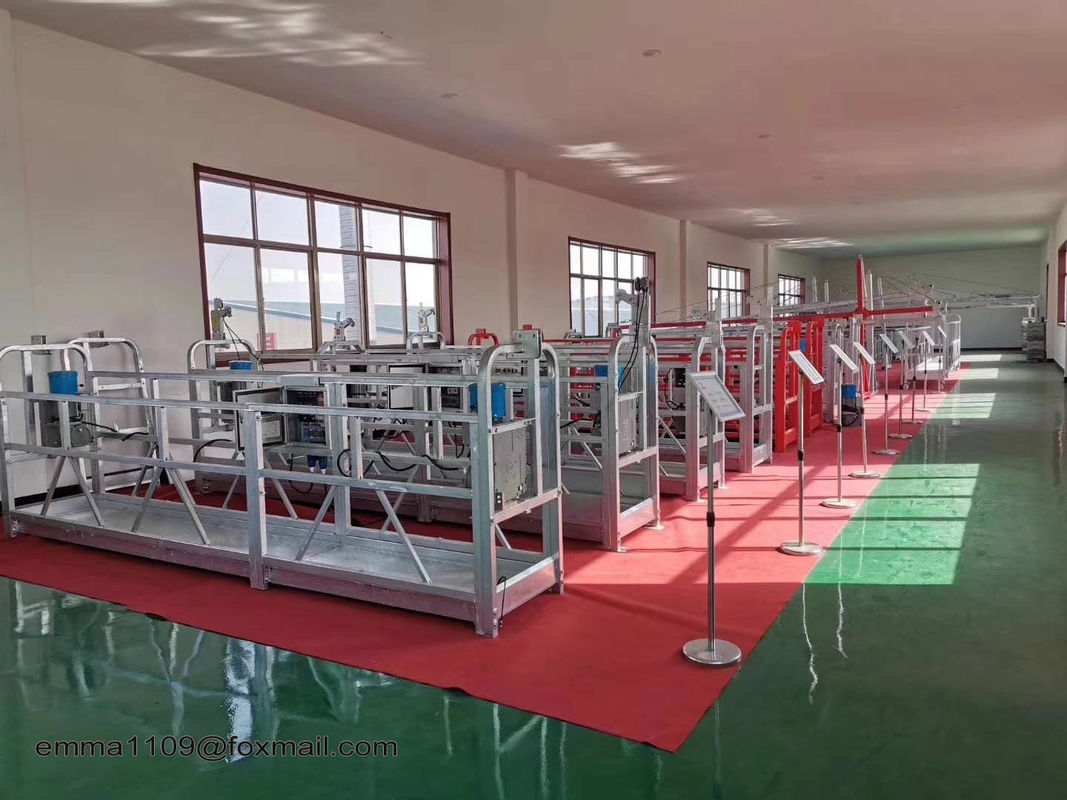

Photos

OEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope DiameterOEM ZLP800 Building Aerial Platorm 800kg 8.6mm Steel Wire Rope Diameter
