Product Details:
Payment & Shipping Terms:
|
| Condition: | 100% New | For: | Window Cleaning |
|---|---|---|---|
| Type: | Steel Hot Galvanized Alloy Material | Load: | 630-1000kg |
| Working Height: | 100m | Rated Speed: | 8-10 Or 9-11 M/min |
| Power: | 380v 50Hz Or Others | Power: | 1.5-2.2kw |
| Rope: | 8.3-9.1mm | Platform: | 6-7.5m |

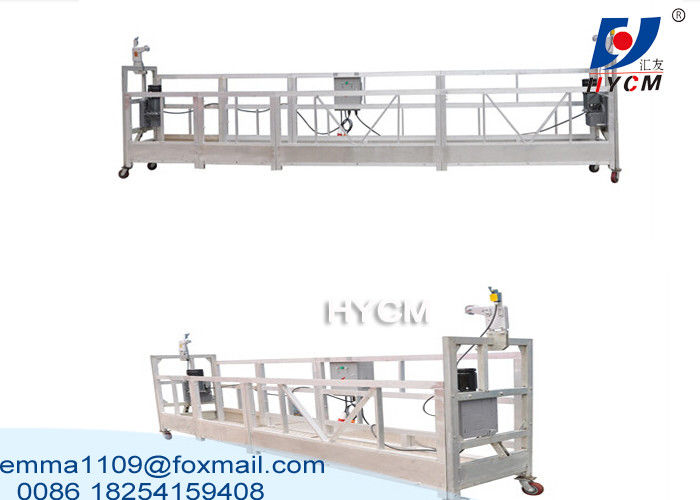

ZLP Steel Wire Suspended Working Platform Steel Hot Galvanized Alloy Material
Introduction:
1m, 2m, 3m, 1.5m, 2.5m to the length made.
Rated Load: 630-1000KG
Rated Lifting Speed: 8-10 or 9-11 m/min
Length of Platform: 6000-7500mm or others
Surface Proceeding: Steel materials(Galvanized,Spraying) or Aluminum
Lifting Height: 100m
Cable: 95m
Max Lifting Height:300m
Steel Rope: 8.3-9.1mm
Hoist Power: 1.5-2.2KW*2
Voltage:380V, 50HZ,3 Phase(standard), 440V/60HZ, 220V/60Hz or others.
Safety Lock Permission Force of Impact: 30KN
Locking Cable Angle: 3°~ 8°
Suspension Mechanism Front Beam Overhang: 1.3 ~ 1.5m ±0.26
Package: Pallet or Naked by Containers
Specification
| Property Model No. | ZLP630 | ZLP800 | ZLP1000 |
| Rated load(kg) | 630 | 800 | 1000 |
| Lifting speed(m/min) | 9～11 | 8～10 | 8~10 |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 |
| Brake torque(Km) | 16 | 16 | 16 |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 |
| Platform material | steel | steel | steel |
| Platform length | 6m | 7.5m | 7.5m |
| Weight(kg) | 375 Kg | 410 Kg | 455kg |
| Suspended mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg |
| Counterweight(kg) optional | 25×36pcs | 25×40pcs | 25×44pcs |
| Diameter of steel rope(mm) | 8.3 | 8.6 | 9.1 |
| Max Lifting height(m) | 300 | 300 | 300 |
| Normal lifting height(m) | 100 | 100 | 100 |
Applications
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Features
1.Our suspended working platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.
2.Suspension power Working Platform is a temporary, flexible high access equipment for maintenance and construction work. distinguished from permanent access equipment. It can be disassembled conveniently.
3. It compared with traditional scaffolding, can save labours and time to maintain the high buildings, such as industry workshop, water tower, bridge, TV tower, big chimney, cenotaph, dam,etc.
4. Besides, Suspension Working Platform can be used to lift specific weight.
5. Suspension Working Platform is a good helper for construciton and decoration of high buildings.
More products available:
Tower Cranes
---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.
---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.
---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.
---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.
SC Construction Man and Material Elevator
------ Rack and pinion elevator, special for the lifting work of construction Man and Material, 1000kg to 4000kg capacity, Passenger and Material, up to 200m. .
SS Building Material Lift / Hoist
------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.
SJY Scissor Lift
