|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Fixed With Tower Head||Max. Load:||10t|
|Boom:||30 Meters 99ft||Tip. Load:||6.0t|
|Power supply:||380V/50Hz Or According To Client's Requirements||Color:||Yellow Or According To Clients Need|

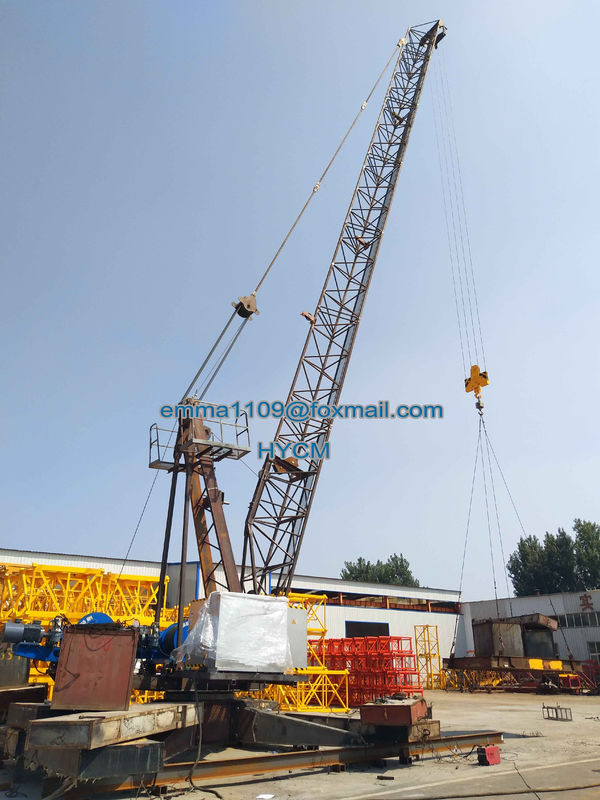

QD150 Tower Derrick Crane 30 meters 99ft Boom Test at Factory Cost
1.QD150(3060) Derrick Tower Crane
2. Type: fixed
3. jib length: 30m
4. tip load: 6.0t
5. max.laod: 10t@4rate, 5t@2rate.
|Rated Lifting Moment||1500KN.m|
|Rated Loading Capacity||10t|
|Max. Lifting Load||10t|
|Max. Lifting Height||150m|
|Jib length / Span||30m|
|Working range||3 to 30m|
|Trolleying speed||0-10 m/min|
|Luffing speed||0-96 0-48 m/min|
|Power supply||380V/50Hz or others|
|Electric switch box||Schneider|
|Slewing bearing model||1600.45|
(1) Special design of separate-settled. Low center weight of gravity in slewing, large lifting capacity and reasonable mechanism design.
(2) Big luffing range. The slewing radius can reach 30 m. More efficiency will come true by changing luffing range under rated load.
(3) Three mechanisms-lifting, luffing and slewing, with satisfied performance in shifting and high efficiency, are operated easily.
(4) With kinds of safety facilities, as limiter for lifting moment, slewing limiter and luffing limiter. Once over load happen, the facilities will turn down power automatically right away.
Also, an electronic transducer for load is fixed to cut down power when overloading appears.
(5) Installation and disassembly is convenient. The product can be transferred to other site in short time and maintenance is very easy and convenient. All spare parts satisfy relative standards.
(6) Electric control box is equipped to the crane which is operated easily and safely.
(1) Pendent line control
(2) Remote control
(3) Cabin control
(4) Choose any two together
(1) Process: Sandblast, Primer, finishing paint
(2) Color: Yellow, Red, Blue etc. (according to your demand).
(3) Average thickness: Above 120 microns. (According to your demand).
1. Shipping platforms
2. High-rise buildings
3. Construction sites
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
