QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load

China QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load supplier
QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load supplier QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load supplier QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load supplier

Large Image :  QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load

Product Details:

Place of Origin: China Mainlad
Brand Name: HYCM
Certification: CE, ISO, GOST, CU-TR
Model Number: QD150 Derrick Crane

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $88500-104000 per set
Packaging Details: Naked packing, 1*40’HQ containers.
Delivery Time: 20 days after receiving the deposit or origin LC
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Condition: 100% New Application: Buildings And Projects
Type: Fixed With Tower Head Max. Load: 10t
Working Jib: 30m Tip. Load: 6.0t
Power supply: 380V/50Hz Or According To Client's Requirements Color: Yellow Or According To Clients Need

QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load

Feature
(1) Special design of separate-settled. Low center weight of gravity in slewing, large lifting capacity and reasonable mechanism design.
(2) Big luffing range. The slewing radius can reach 24 m. More efficiency will come true by changing luffing range under rated load.
(3) Three mechanisms-lifting, luffing and slewing, with satisfied performance in shifting and high efficiency, are operated easily.
(4) With kinds of safety facilities, as limiter for lifting moment, slewing limiter and luffing limiter. Once over load happen, the facilities will turn down power automatically right away.
Also, an electronic transducer for load is fixed to cut down power when overloading appears.
(5) Installation and disassembly is convenient. The product can be transferred to other site in short time and maintenance is very easy and convenient. All spare parts satisfy relative standards.
(6) Electric control box is equipped to the crane which is operated easily and safely.


Specification


Rated Lifting Moment1500KN.m
Rated Loading Capacity10t
Max. Lifting Load10t
Tip Load6.0t
Max. Lifting Height150m
Jib length / Span30m
Working range3 to 30m
Slewing speed0-0.6r/min
Trolleying speed0-10 m/min
Luffing speed0-96 0-48 m/min
Power supply380V/50Hz or others
Electric switch boxSchneider
Slewing bearing model1600.45


Short Parameters
1.QD150(3060) Derrick Tower Crane
2. Type: fixed
3. jib length: 30m
4. tip load: 6.0t
5. max.laod: 10t@4rate, 5t@2rate.
6.height:75m@4rate, 150m@2rate

Control method
(1) Pendent line control
(2) Remote control
(3) Cabin control
(4) Choose any two together
Painting
(1) Process: Sandblast, Primer, finishing paint
(2) Color: Yellow, Red, Blue etc. (according to your demand).
(3) Average thickness: Above 120 microns. (According to your demand).


Application
1. Shipping platforms
2. High-rise buildings
3. Construction sites

Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

Photos

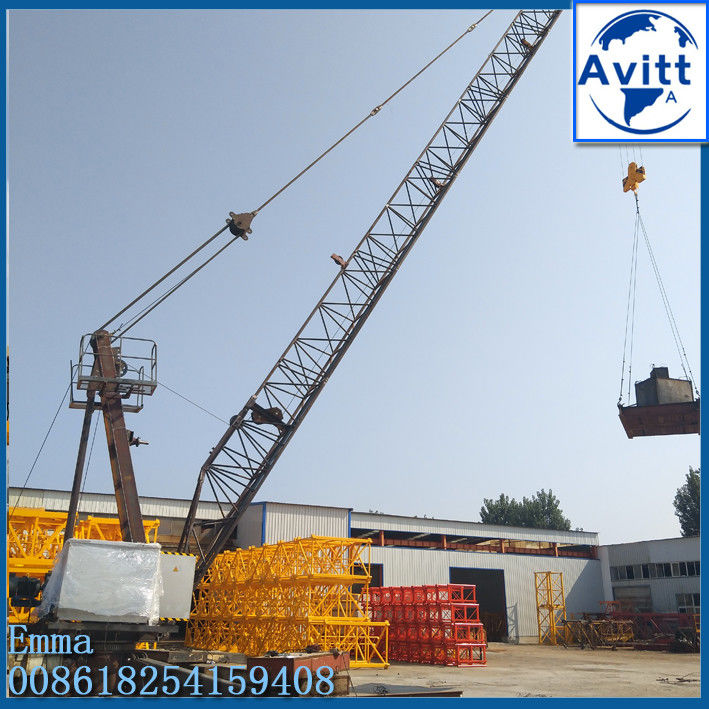

QD150 Derrick Crane 30m Working Jib 6.0t Tip Load and 10t Max.Load
