QTD5015 Jib Luffing Tower Crane 165 ft Boom 8000kg Load Specificaion

Name: QTD5015 Jib Luffing Tower Crane 165 ft Boom 8000kg Load Specificaion
Brand: Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane
SKU: QTD5015 Luffing Tower Crane
Price: 110,700.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HYCM

Certification: CE, ISO, GOST, CU-TR

Model Number: QTD5015 Luffing Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $107900-113500 per set

Packaging Details: Naked packing, 6*40’HQ containers.

Delivery Time: 30 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 10 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Application:	Buildings And Projects	Type:	Fixed With Tower Head
Load Specificaion:	8000kg	Boom:	165 Ft
End Load:	1.5 T	Power supply:	380V/50Hz Or According To Client's Requirements
Mast section:	1.61.63 M (split Type)	Main Chord:	180*18 Mm (angle Steel)

Application:	Buildings And Projects
Type:	Fixed With Tower Head
Load Specificaion:	8000kg
Boom:	165 Ft
End Load:	1.5 T
Power supply:	380V/50Hz Or According To Client's Requirements
Mast section:	1.61.63 M (split Type)
Main Chord:	180*18 Mm (angle Steel)

Product Description

QTD5015 Jib Luffing Tower Crane 165 ft Boom 8000kg Load Specificaion

Performance parameters
• Max. jib length: 50m;
• Max. lifting capacity 8t;
• Max. hoisting capacity at jib tip:1.5t;
• Rated lifting moment: 1200 Kn.m;
• Max. freestanding height: 27m; Max. working height of anchored crane: 160m;
Specification

Model		QTD120 (5015) Luffing Tower Crane
Working Radius (m)		50
Max. Load Capacity (T)		8
Tip Load (T)		1.5
Free standing height (m)		37
Max. Height with anchorages (m)		160
Mast Section dimension (m)		1.6×1.6×3, angle steel 180×18mm
Hoisting Mechanism	Speed (m/min)	0-80 -040
	Motor power (kw)	24/24/5.4
Slewing Mechanism	Speed (r/min)	0-0.6
	Motor power (kw)	2*3.7
Trolleying Mechanism	Speed (m/min)	0-10
	Motor power (kw)	30
Jacking-up System	Speed (m/min)	0.4
	Motor power (kw)	7.5
Total Power (kw)		34
Power Supply		380V/50Hz or according to clients needs

Commercial Terms
Price: Negotiable
Delivery time: 30 days after receiving 30% advanced payment
Trade terms: FOB (qingdao) Or CFR, CIF according to Clients needs
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Packing: Standard Exporting Packing
Warranty: At least 12 months

Photos

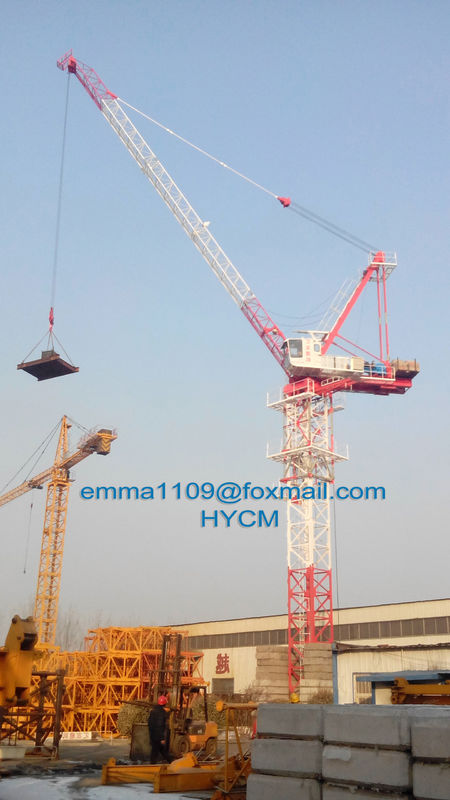

QTD5015 Jib Luffing Tower Crane 165 ft Boom 8000kg Load Specificaion 0
