Highlight:

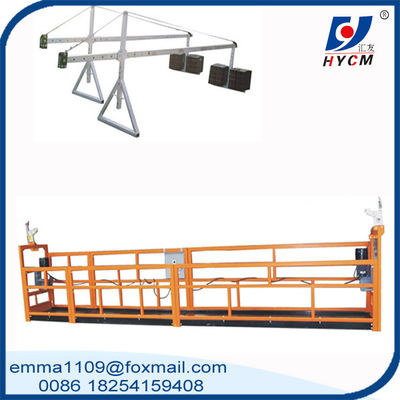

800kg Rated Load Building Maintenance Gondola for High Rise Window Cleaning
Introduction:
1m, 2m, 3m, 1.5m, 2.5m to the length made.
In any Combination Rated Load: 800KG
Rated Lifting Speed: 8-11m/min
Length of Platform: 6000mm or 7500mm
Surface Proceeding: Steel materials(Galvanized,Spraying) or Aluminum
Lifting Height: 100m
Cable: 95m
Max Lifting Height:200m
Steel Rope: 8.3mm or 9.1mm
Hoist Power: 1.8KW*2
Voltage:380V, 50HZ, Three-Phase(standard), 440V/60HZ, 220V/60Hz or others.
Safety Lock Permission Force of Impact: 30KN
Locking Cable Angle: 3°~ 8°
Suspension Mechanism Front Beam Overhang: 1.3 ~ 1.5m ±0.26
Support Adjustable Height: 1.44 ~ 2.14m ±0.26
Counter Weight: 1000KG or others
Package: Wooden or Naked by Containers
Applications
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Specification
| Model |
ZLP800 Suspended Working Platform |
| Rated load(kg) |
800 |
| Lifting speed(m/min) |
8.2 |
| Motor power(kw) |
2×1.8 50HZ/60HZ |
| Brake torque(Km) |
15.2 |
| Steel rope angle adjusting range(°) |
3°- 8° |
| Distance between two steel rope(mm) |
≤100 |
| Rated stretch of front beam(mm) |
1100-1700 |
|
Suspending Platform
|
Locking |
Aluminum alloy |
| Nr. of platform rack |
Single rack |
| Nr. of platform |
3 |
| L×W×H(mm) |
(2500×3)×690×1180 |
| Weight(kg) |
217 |
| Suspending mechanism(kg) |
2×175 Kg |
| Counterweight(kg) optional |
25×40pcs |
| Diameter of steel rope(mm) |
8.6 |
| Voltage(v) 3PHASES |
220V/380V/415V (customized) |
Features
1.Our suspended working platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.
2.Suspension power Working Platform is a temporary, flexible high access equipment for maintenance and construction work. distinguished from permanent access equipment. It can be disassembled conveniently.
3. It compared with traditional scaffolding, can save labours and time to maintain the high buildings, such as industry workshop, water tower, bridge, TV tower, big chimney, cenotaph, dam,etc.
4. Besides, Suspension Working Platform can be used to lift specific weight.
5. Suspension Working Platform is a good helper for construciton and decoration of high buildings.
6. ZLP800 suspended platform uses LTD80 hoisting motor. It has electromagnetic brake motor, centrifugal speed limiting device, two steep speed reducer and “a” type rope winding system.
7. Hoisting motor can wind rope automatically. Operator only need to insert rope into the motor.
