16t Building Luffing Tower Crane D6029 Model 60M Large Jib 2.9t End Load

Product Details

Place of Origin: China

Brand Name: AVITT or others

Certification: CE, ISO, GOST, CU-TR

Model Number: QTD260(6029) Luffing Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $190900-199200 per set

Packaging Details: Naked packing, 10*40’HQ containers.

Delivery Time: 35 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 3 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                16t luffing tower crane, Building luffing tower crane, 16t luffing jib tower crane


Application:	Buildings And Projects	Type:	Fixed With Tower Head
Max. Load:	16 T	Jib Length:	60 M
Tip. Load:	2.9 T	Power supply:	380V/50Hz Or According To Client's Requirements
Mast section:	223 M (split Type)	Main Chord:	200*26 Mm (angle Steel)

Application:	Buildings And Projects
Type:	Fixed With Tower Head
Max. Load:	16 T
Jib Length:	60 M
Tip. Load:	2.9 T
Power supply:	380V/50Hz Or According To Client's Requirements
Mast section:	223 M (split Type)
Main Chord:	200*26 Mm (angle Steel)

Product Description

16t Building Luffing Tower Crane D6029 Model 60M Large Jib 2.9t End Load

Description Of Luffing Jib Tower Crane

The Luffing Tower Crane has the merits of creative design and reliable operation. It is equipped with a luffing arm bracket, a hydraulic self-propelling mechanism, and an luffing mechanism.

Widely applied in various construction sites, this hoisting equipment shows excellent speed-control capacity and operational stability as well as high work efficiency.

Specification of Luffing Jib Tower Crane

Model		QTD260 (6029) Luffing Jib Tower Crane
Working Radius (m)		60
Max. Load Capacity (T)		16
Tip Load (T)		2.9
Free standing height (m)		65
Max. Height with anchorages (m)		260
Mast Section dimension (m)		2×2×3, angle steel 200×20mm
Hoisting Mechanism	Speed (m/min)	(a=2) 0-100; (a=4) 0-50
	Motor power (kw)	55
Slewing Mechanism	Speed (r/min)	0-0.57
	Motor power (kw)	2*9
Trolleying Mechanism	Speed (m/min)	0-10
	Motor power (kw)	45
Jacking-up System	Speed (m/min)	0.4
	Motor power (kw)	11
Total Power (kw)		118
Power Supply		380V/50Hz or according to clients needs

Components of Luffing Jib Tower Crane

Luffing Jib Tower Cranes are used extensively in construction and other industry to hoist and move materials. There are many types of tower cranes. Although they are different in type, the main parts are the same, as follows:

Tower Crane Foundation (fixed with cross beam type, well frame type, outrigger type or base with ballast type)

Tower Crane Mast Section (2*2*3m split same with Potain)

Tower Crane Climbing Frame (with hydraulic system)

Tower Crane Table

Tower Crane Luffing-Jib

Tower Crane Counter-Jib

Three Mechansims and full sets safety device

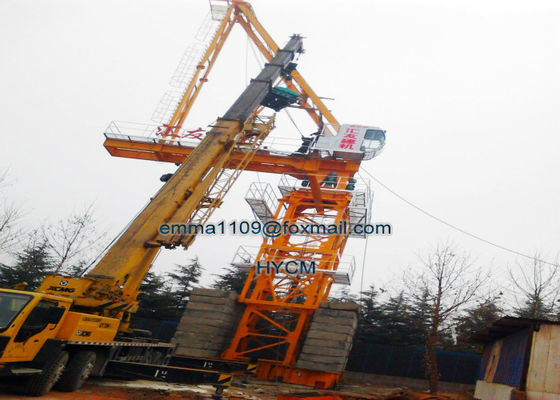

Photos of Luffing Jib Tower Crane

16t Building Luffing Tower Crane D6029 Model 60M Large Jib 2.9t End Load 0
