Product Details
Place of Origin: China
Brand Name: HYCM TOWER CRANE
Certification: CE, ISO, GOST, CU-TR
Model Number: QTD120(4522) Luffing Tower Crane
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $101300-107500 per set
Packaging Details: Naked packing, 6*40’HQ containers.
Delivery Time: 30 days after receiving the deposit or origin LC
Payment Terms: TT, LC
Supply Ability: 10 sets per month
Application: |
Buildings And Projects |
Type: |
Fixed With Tower Head |
Max. Load: |
8 T |
Jib Length: |
45 M |
Tip. Load: |
2.2 T |
Power supply: |
380V/50Hz Or According To Client's Requirements |
Mast section: |
1.6*1.6*3 M (split Type) |
Main Chord: |
180*18 Mm (angle Steel) |
Application: |
Buildings And Projects |
Type: |
Fixed With Tower Head |
Max. Load: |
8 T |
Jib Length: |
45 M |
Tip. Load: |
2.2 T |
Power supply: |
380V/50Hz Or According To Client's Requirements |
Mast section: |
1.6*1.6*3 M (split Type) |
Main Chord: |
180*18 Mm (angle Steel) |
QTD120-4522 Luffing Crane Tower 8t Load 45m Jib Hot Sales In Dubai
Performance parameters
• Max. jib length: 45m;
• Max. lifting capacity 8t;
• Max. hoisting capacity at jib tip:2.2t;
• Rated lifting moment: 1200 Kn.m;
• Max. freestanding height: 27m; Max. working height of anchored crane: 160m;
Specification
Model | QTD120 (4522) Luffing Tower Crane | |
Working Radius (m) | 45 | |
Max. Load Capacity (T) | 8 | |
Tip Load (T) | 2.2 | |
Free standing height (m) | 37 | |
Max. Height with anchorages (m) | 160 | |
Mast Section dimension (m) | 1.6×1.6×3, angle steel 180×18mm | |
Hoisting Mechanism | Speed (m/min) | 80/40/8.5 40/20/4.25 |
Motor power (kw) | 24/24/5.4 | |
Slewing Mechanism | Speed (r/min) | 0.6 |
Motor power (kw) | 2*3.7 | |
Trolleying Mechanism | Speed (m/min) | 10 |
Motor power (kw) | 30 | |
Jacking-up System | Speed (m/min) | 0.4 |
Motor power (kw) | 7.5 | |
Total Power (kw) | 34 | |
Power Supply | 380V/50Hz or according to clients needs |
Advantages
Use in extremely restricted areas
Small slewing radii
Modular design
Pre-installed assemblies
Extreme hook heights
Horizontal load movement
Climbing inside buildings
Safety monitoring during climbing
Commercial Terms
Price: Negotiable
Delivery time: 30 days after receiving 30% advanced payment
Trade terms: FOB (qingdao) Or CFR, CIF according to Clients needs
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Packing: Standard Exporting Packing
Warranty: At least 12 months
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

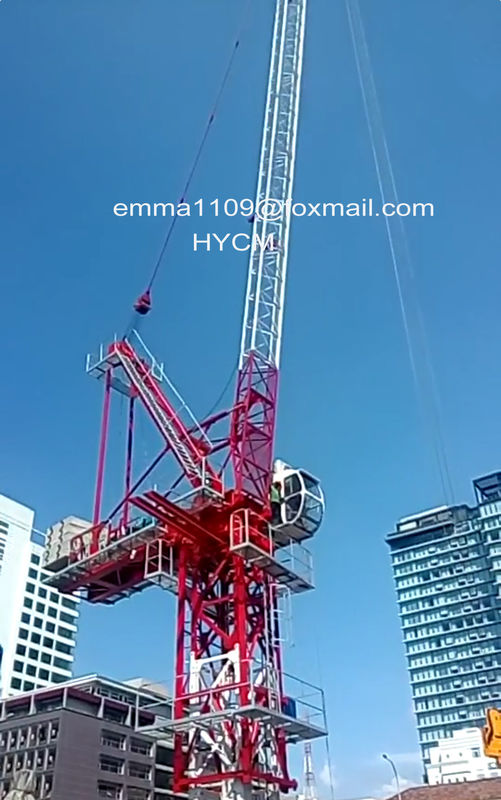

Photos
