45m QTD120 4522 Jib Luffing Tower Crane 6tons Load 1.6m Section Mast

Product Details

Place of Origin: China

Brand Name: HYCM TOWER CRANE

Certification: CE, ISO, GOST, CU-TR

Model Number: QTD120(4522) Luffing Tower Crane

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $96300-102000 per set

Packaging Details: Naked packing, 6*40’HQ containers.

Delivery Time: 30 days after receiving the deposit or origin LC

Payment Terms: TT, LC

Supply Ability: 10 sets per month

Get Best Price
Product Details
Highlight:
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 T
Jib Length:
45 M
Tip. Load:
2.2 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*3 M (split Type)
Main Chord:
180*18 Mm (angle Steel)
Application:
Buildings And Projects
Type:
Fixed With Tower Head
Max. Load:
6 T
Jib Length:
45 M
Tip. Load:
2.2 T
Power supply:
380V/50Hz Or According To Client's Requirements
Mast section:
1.6*1.6*3 M (split Type)
Main Chord:
180*18 Mm (angle Steel)
Product Description

45m QTD120 4522 Jib Luffing Tower Crane 6tons Load 1.6m Section Mast


Short Description
The tower crane is made up of base support, mast section, climbing cage, upper turntable, below turntable, lifting jib, counter jib, the slewing mechanism, the trolleying mechanism, the luffing mechanism, sling, the tower head, wire rope, hook, ballast, pulley block, electrical control system and hydraulic jacking mechanism with full limiter device.

Specification

Model

QTD120 (4522) Luffing Tower Crane

Working Radius (m)

45

Max. Load Capacity (T)

6

Tip Load (T)

2.2

Free standing height (m)

37

Max. Height with anchorages (m)

160

Mast Section dimension (m)

1.6×1.6×3, angle steel 180×18mm

Hoisting Mechanism

Speed (m/min)

80/40/8.5 40/20/4.25



Motor power (kw)

24/24/5.4

Slewing Mechanism

Speed (r/min)

0.6



Motor power (kw)

2*3.7

Trolleying Mechanism

Speed (m/min)

10



Motor power (kw)

30

Jacking-up System

Speed (m/min)

0.4



Motor power (kw)

7.5

Total Power (kw)

34

Power Supply

380V/50Hz or according to clients needs


Other important advantages
1) Fast, simple and safe erection of small, light individual modules.
2) Excellent choice for narrow sites in the city as the working jib/boom is luffing type.
3) Stable function of Frequency Inverters and other electrical control systems for main mechanism, and easy and convenient self repair and maintenance for the clients.
4) Ball blasting and several painting for steel structure surface of tower cranes, the hot-dip galvanizing process is used on the handrails, and the time limit of the galvanized quality assurance longer years.
5) Good at endurance, adapting to atrocious weather like higher of lower temperature, acid rain and typhoon.

Commercial Terms
Price: Negotiable
Delivery time: 15-30 days after receiving 30% advanced payment
Trade terms: FOB (qingdao)
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Packing: Standard Exporting Packing
Warranty: At least 12 months



Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices


Photos

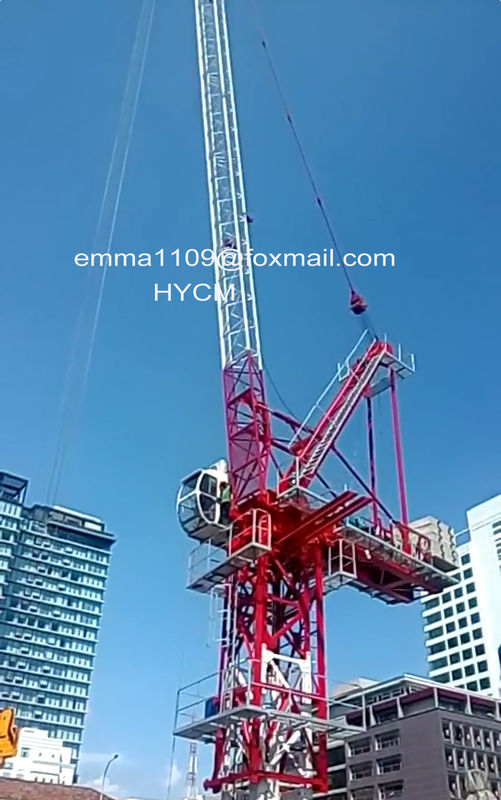

45m QTD120 4522 Jib Luffing Tower Crane 6tons Load 1.6m Section Mast 0
