|Condition:||100% New||Application:||Buildings And Projects|
|Type:||Electric Cable Climbing||Max. Load:||1t|
|Max. Height:||150m||Rated Speed:||.34.4m/min|
|Power supply:||380V/50Hz Or According To Client's Requirements||Motor Power:||2*11kw|
|Motor Brand:||Xingxiang, Sanshang, Juli Or Other||Mast Section Size:||650*650*1508mm|
Small Building Hoist SC100 Single Cage or Cabin Elevator For Construction
Advantage of Small Construction Hoist Elevator
1). CE, ISO, GOST Approved
2). 10 Years Manufacturer Experience
3). Export to more than 20 Countries.
4). 1 Year Warranty and Quick Delivery
|Model||SC100 single cage construction hoist|
|Payload capacity||Up to 1000 kg|
|Max. lifting height||150 m (Increased lifting height on request.)|
|Cage width (internal)||1.3 m & 1.5 m|
|Cage length (internal)||3 m|
|Cage height (internal)||2.2 m|
|Motor control||Directly driven without inverter|
|Motor power||2 x 3 x 11 kw|
|Power supply range||380V, 50Hz or 60 Hz, 3 phase|
|Type of mast||650mm, Tubular steel with integrated rack|
|Length mast section||1.508 m|
|Weight mast section with 1 racks||127 kg|
Parts of Small Construction Hoist Elevator
1. Driver Cabin
The driver cabin of our construction hoist is constructed from hot dip galvanized plates with surface powder spraying treatment which ensure superior corrosion resistance. It has fan that can improve driver's working environment.

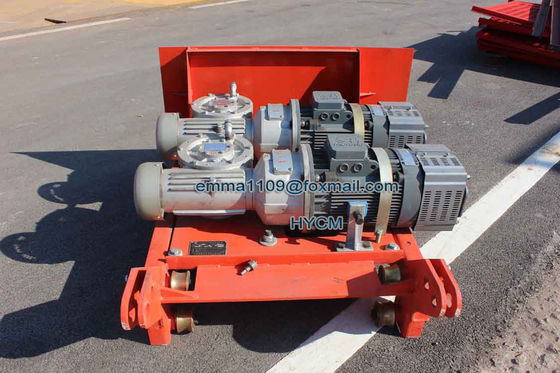

2. Gear Train
The new back gear is lengthened by one time at the stationary bearing end where it is equipped with locating taper pin to improve stress state and avoid loosening of back gear that will affect gear backlash.
The parts such as bear gear, idler wheel, etc. that have influence on running stability are improved to enhance machining and manufacturing precision. All of them will experience thermal refining treatment and galvanizing treatment after that, thus showing excellent durability. Case door pulley and cable pulley are made from nylon material which can prolong their life time and effectively reduce noise.
Picture of Small Construction Hoist Elevator
